Toggle Clamp - Large Size (201B)

This Toggle Clamp securely holds PCBs in place for testing and pogo-pin jigs, with an adjustable rubber-tipped clamp that applies firm, even pressure without damaging the board.

*Ka-thunk* Pin down that PCB with our Toggle Clamp, a sturdy and reliable way to quickly press and release with precision!

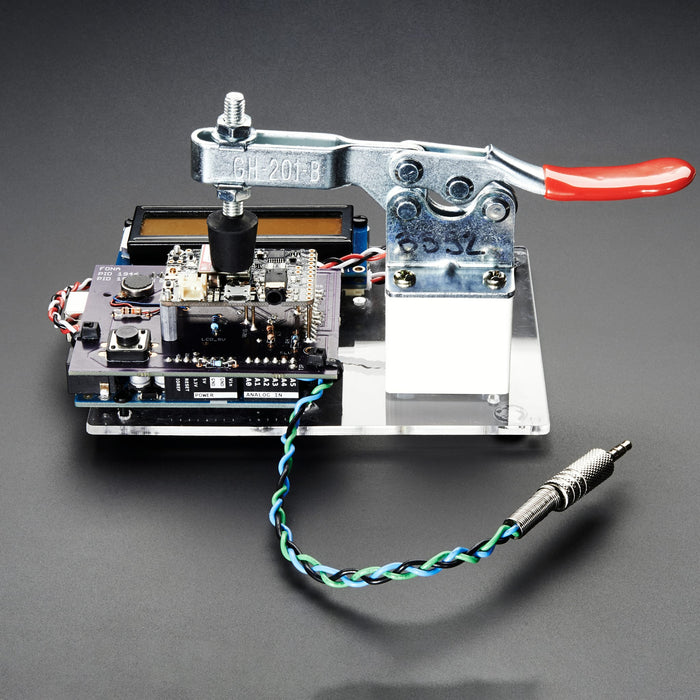

A pogo-pin bed is a great way to connect and test boards without any soldering, but you have to somehow get that PCB aligned right and evenly pressed down on each pogo. After much experimenting, we settled on this toggle clamp and we use it all the time in our testing processes.

This beauty is strong enough to grip onto a PCB, but the rounded rubber tip ensures it won't mar or damage any circuits. You'll need to bolt it securely, then attach the rubber nub with the included hex nuts. The height of the nub can be adjusted, as can the location along the clamp.

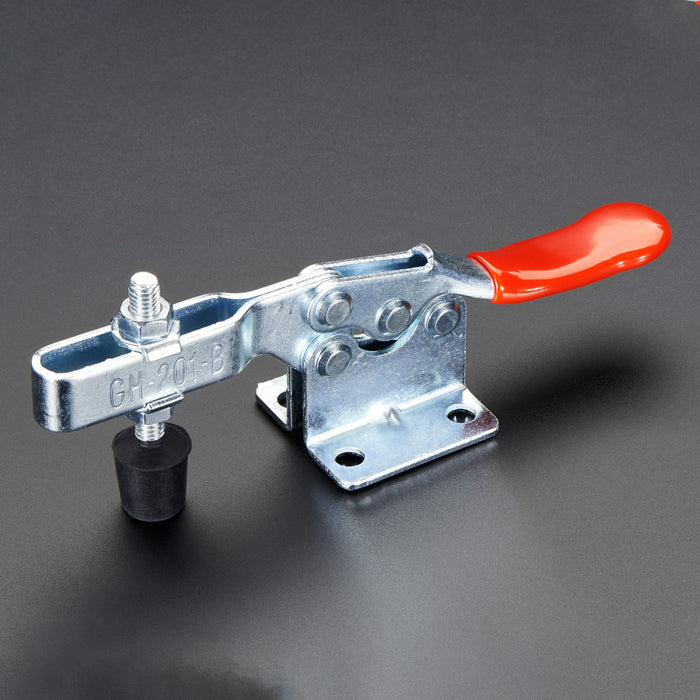

This is the large-size flip-up type toggle clamp.  We also stock this in a small flip-down style or a medium flip up style.

Features

• Sturdy toggle clamp for secure PCB alignment and pressing
• Rounded rubber tip prevents damage to circuits and components
• Quick press and release mechanism for efficient testing
• Compatible with pogo-pin beds for solderless connections
• Adjustable nub height for various PCB thicknesses
• Adjustable clamp position along the mounting rail

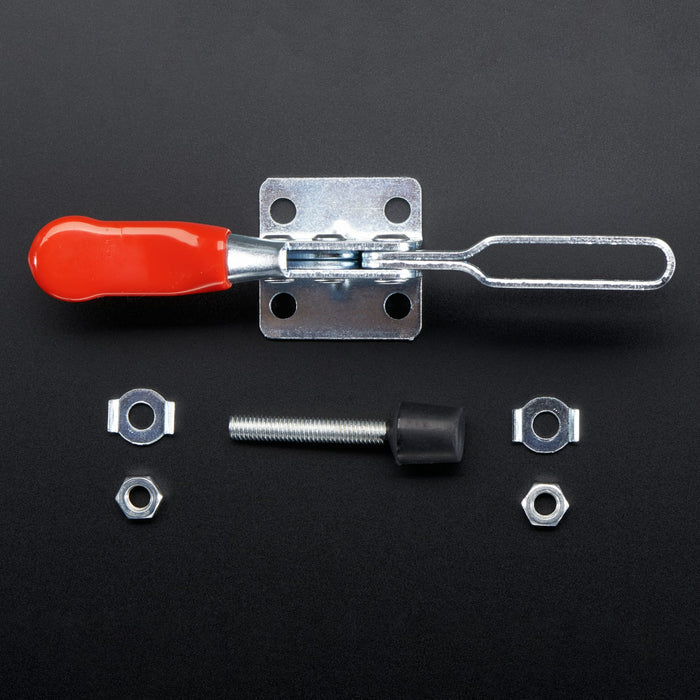

• Includes hex nuts for rubber nub attachment
• Requires bolt mounting to secure in place

Specifications

• Weight: 0.3lbs

Resources

• Datasheet
• Diagram

Package Contents

• 1x Toggle Clamp - Large Size (201B)
