PCIe to M.2 Adapter (A) for Raspberry Pi CM4 IO Board

PCIe to M.2 Adapter (A) for Raspberry Pi CM4 IO Board

$3.26
$3.26 $5.26

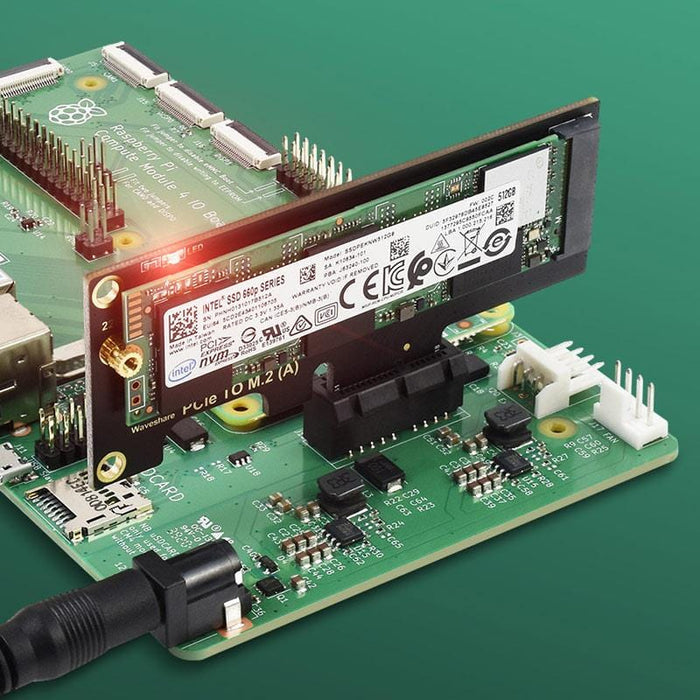

The Compute Module 4 IO board includes a 1x PCIe Gen 2.0 slot allowing you to add additional hardware to your CM4 projects. This PCI-E to M.2 adapter allows you to use an NVMe (M Key) M.2 SSD with your CM4 IO board.

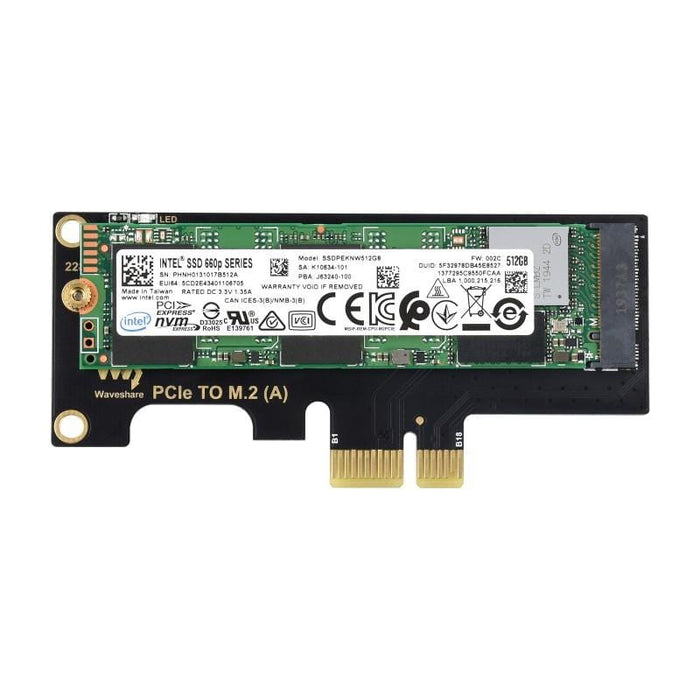

The adapter can accept different-sized M.2 SSDs including 2230, 2242, 2260 and 2280 format.

When powered on, the onboard LED will light up and blink during activity (reading/writing).

Note: SSD, CM4 and IO board not included.

Features

  • Compatible with Compute Module 4 IO board
  • Compatible with M.2 NVMe SSDs (M Key)
  • Data Rate: 32Gbps (dependant on attached hardware/controller - CM4 rates limited to PCI-E x1 data transfer speeds)
  • Supports PCI-E x1, x4, x8 and x16 sockets
  • Immersion Gold contacts

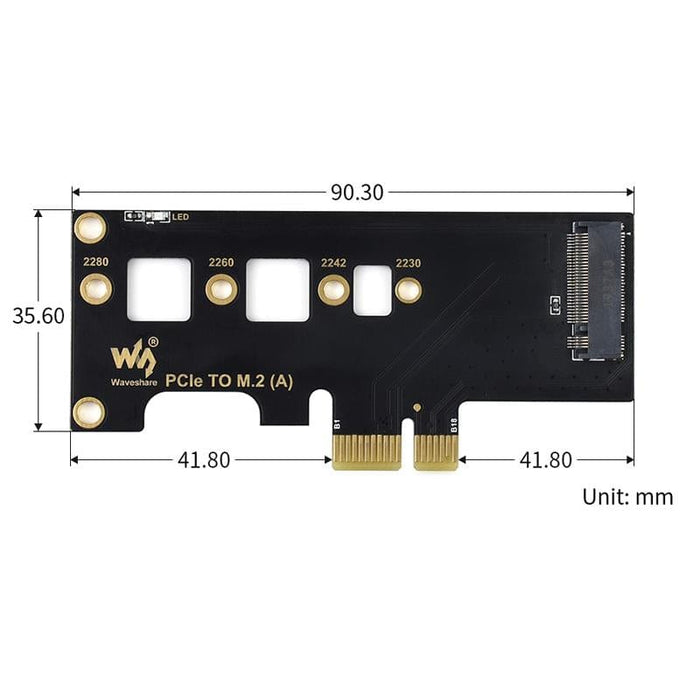

  • Dimensions: 90.30mm x 35.60mm

Package Contents

  • PCI-E adapter
  • Fixings pack
