Grove - Slide Potentiometer

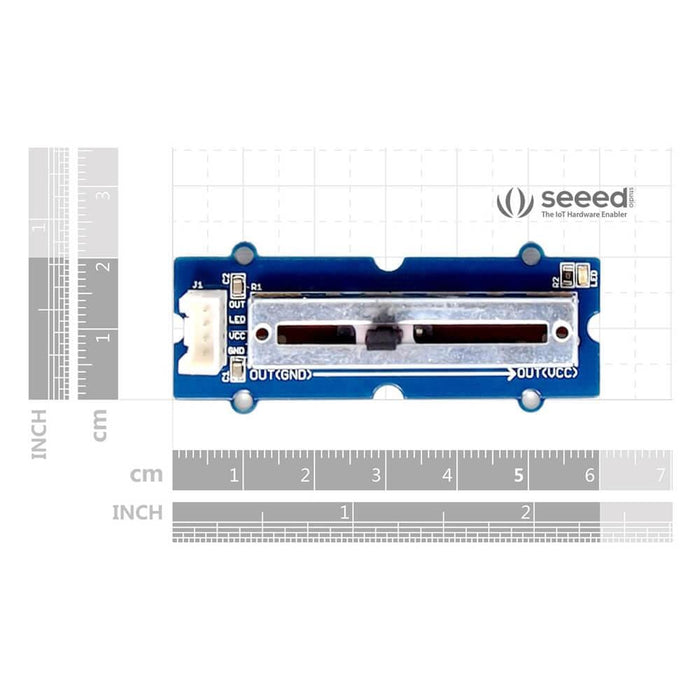

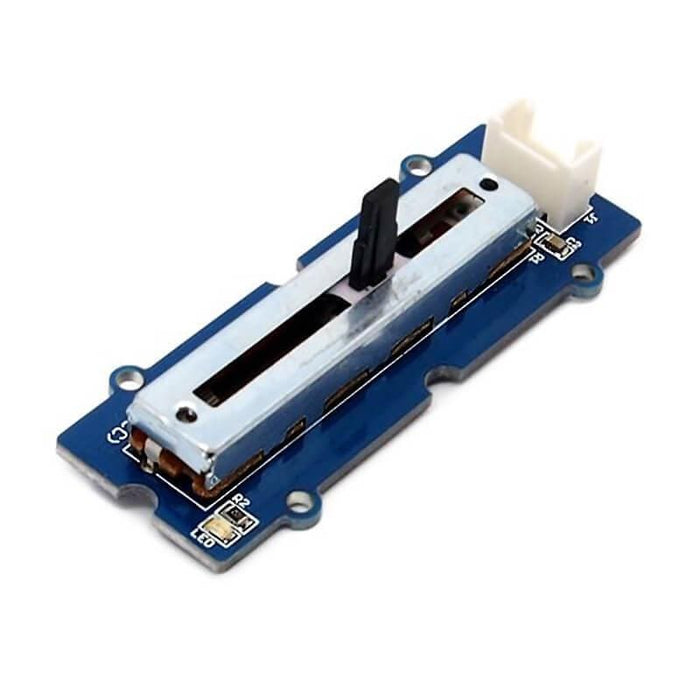

The Grove Slide Potentiometer is a linear variable resistor with a total resistance of 10k. When you move the lever from one side to the other, its output voltage will range between 0 V to the VCC you apply. Three of four Grove pins are connected to VCC, GND and the ADC IN on the slide, while the remaining pin is connected to a green indicator LED. You can use the indicator LED to visually display the change on the potentiometer.

Grove - Slide Potentiometer is compatible with both Arduino and Raspberry Pi. Please use a Base Shield V2 to connect it with your Arduino boards and use a Base HAT for Raspberry Pi to connect with your Raspberry Pi.

We also stock the Grove Rotary Angle Sensor (Rotary Potentiometer).

Features

• 30 mm long slide length
• Linear resistance taper
• Grove compatible
• Weight: 13g
• Product number: Seeed 101020036

Resources

• Product Wiki

Package Contents

• 1x Grove - Slide Potentiometer
