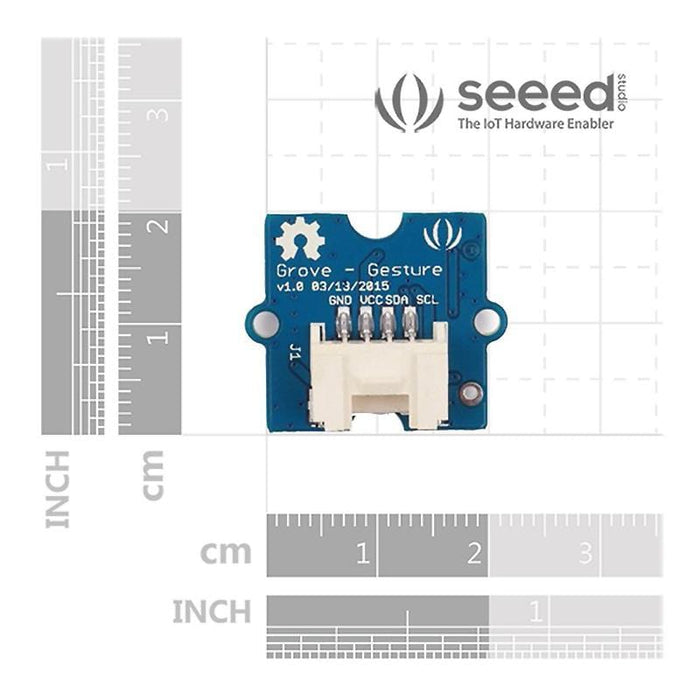

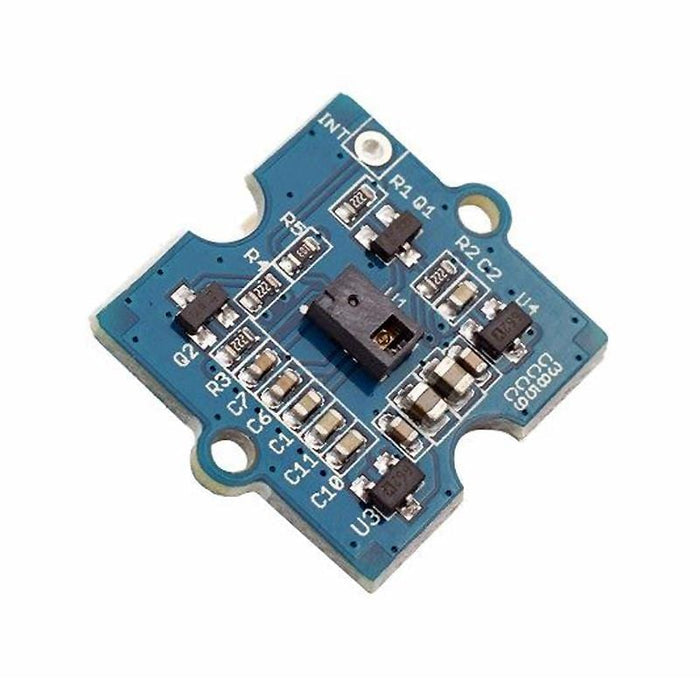

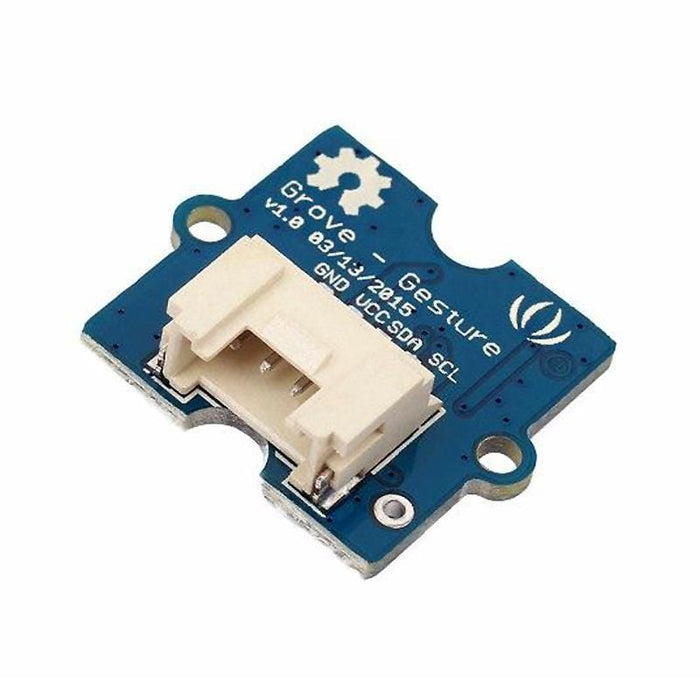

Grove - Gesture Sensor (PAJ7620U2)

The Grove Gesture is based on the PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 gestures including moving up, moving down, moving left, moving right and more, with a simple swipe of your hand.

We can use the gesture to adjust the sound volume, control a robot, direct an application and more. We can also make a remote-control unit, which is able to operate many devices at the same time using gestures

Features

• 9 gestures recognition
• Built-in proximity detection
• Grove compatible
• Product number: Seeed 101020083

Specifications

• Interface: IIC
• 9 gesture recognition
• Operating voltage: 5V
• Dimensions: 20x20mm
• Sensor: PAJ7620U2
• Detecting range: 5-10cm
• Ambient light immunity: < 100k Lux

Resources

• Product Wiki

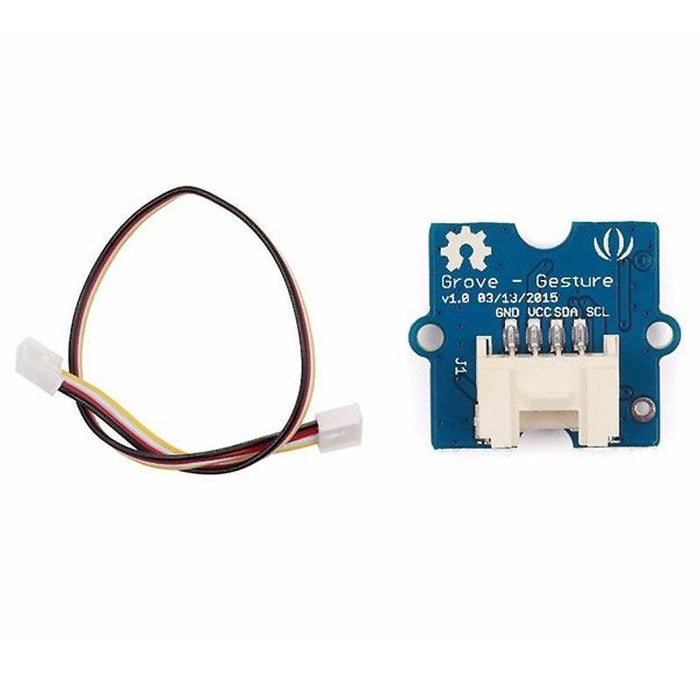

Package Contents

• 1x Grove Gesture Sensor
• 1x Grove Cable
