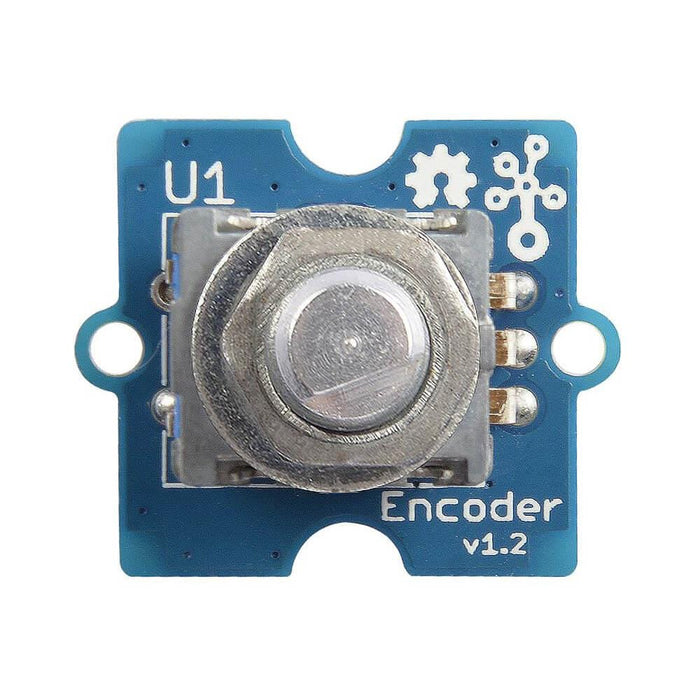

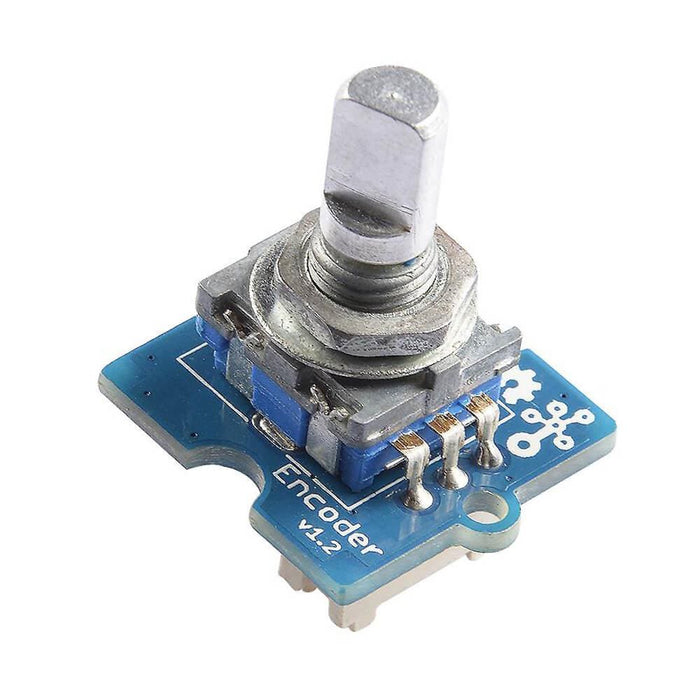

Grove - Encoder

This Grove module is an incremental rotary encoder. It encodes the rotation signal from the axis and outputs the signal via electronic pulse. The Grove – Encoder is one of the many Grove series modules and uses a standard Grove interface.

Combine with the Grove Circular LED for LED feedback from your encoder!

Note: Usually these kinds of modules are able to generate another signal when pressed down. However, due to the limitation of the number of Grove signal lines, this board is made without the output of this signal.

Features

• Incremental encoder
• Grove Interface
• 360-degree rotation
• Product number: Seeed 111020001

Specifications

• Voltage: 4.5V~5.5V
• Current: 10mA~30mA

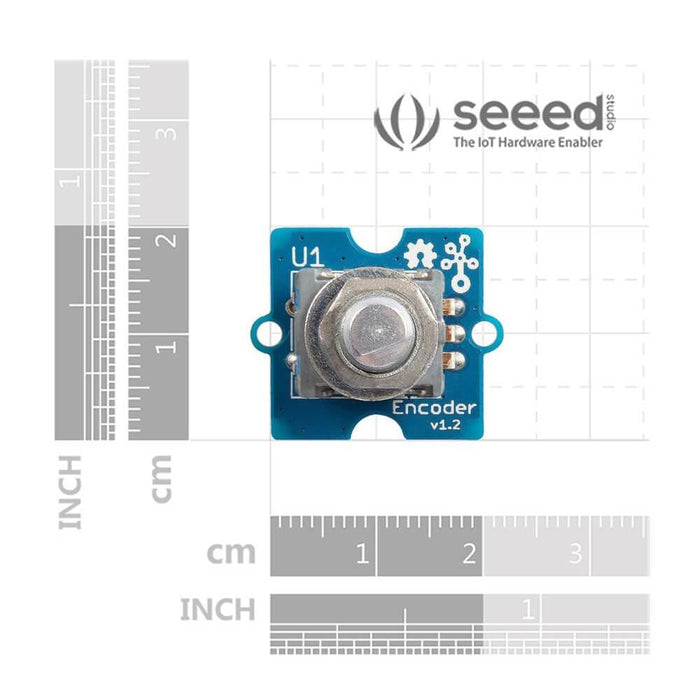

• Dimensions: 20*20mm
• Net Weight: 12g

Resources

• Product Wiki

Package Contents

• 1x Grove Encoder
