Automotive Gauge Stepper Motor (x27.168)

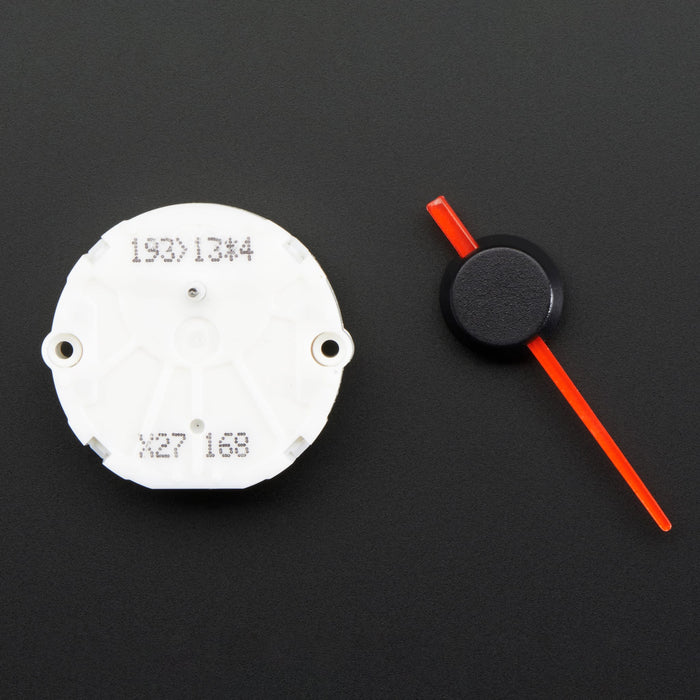

This Mini Stepper Motor with Dial provides smooth, precise movement over a ~315° range, with around 0.5° step resolution for creating gauges, dials and other lightweight indicators.

This stepper motor is a little different than the large NEMA-17 types you may be used to. These are often used in gauges for motorcycles and cars to replace the old-style fully-analogue type.

They have extremely fine step precision of about 1/2 a degree per step, 600 steps for single stepping, fast response for quick movements, and a range of 315° degrees. Their smooth motion makes good for small projects that need a dial indicator, and more precision motion than you may get with a needle gauge.

Since this is a bi-polar stepper motor you do need to have some sort of H-Bridge to drive it. A L293D or TB6612 will do the job nicely.

If you have a microcontroller that can drive 200ohm loads you might be able to use the direct pins without extra MOSFETs, just remember to include kickback/flyback protection diodes!

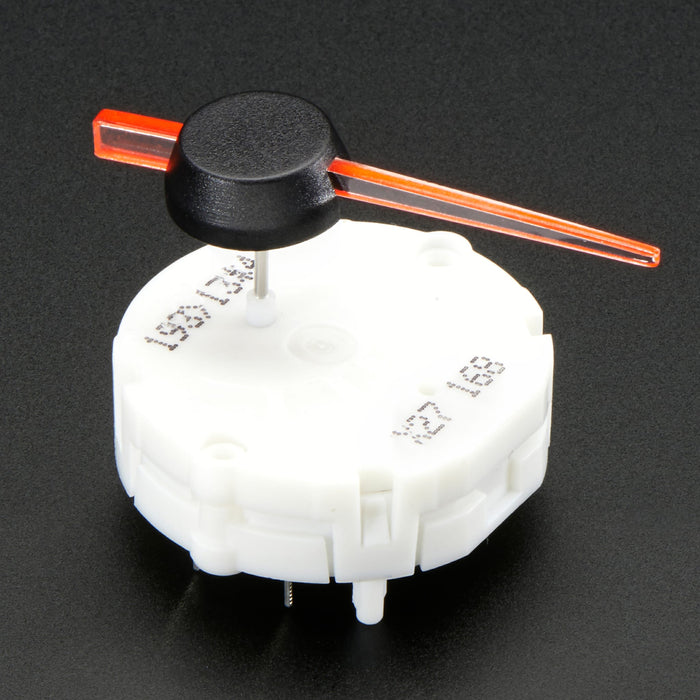

Please note: The motor is quite 'weak', not good for moving anything but a light indicator. We include a red-line dial that fits nicely on top by pushing onto the needle shaft.

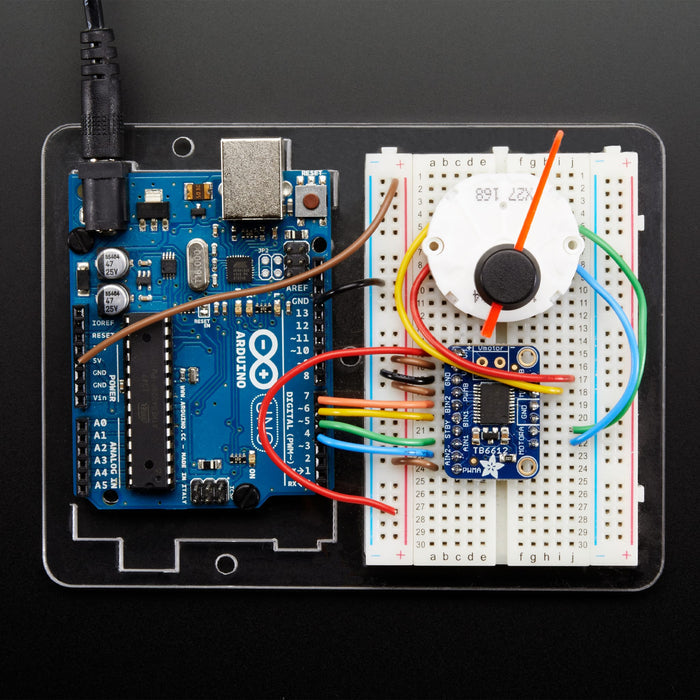

Arduino Uno, breadboard, jumper wires and TB6612 board not included.

Features

• Axial Force Maximum: 150N

• Axial Pull Force Maximum: 100N

• Radial Force Maximum: 12N

• Rotation Angle Maximum: 315°

• Coil Resistance: 260 ohm

• General Tolerance: ± 0.1 / ± 5°

• Rotation Angle Maximum: ~315°

• 600 steps per 'rotation' (315 degree rotation)

Specifications

• Dimensions
  • Red-Line Dial Diameter: 13mm

  • Red-Line Dial Length: 42mm

  • Dial Thickness: 1mm

  • Motor Diameter: 32mm

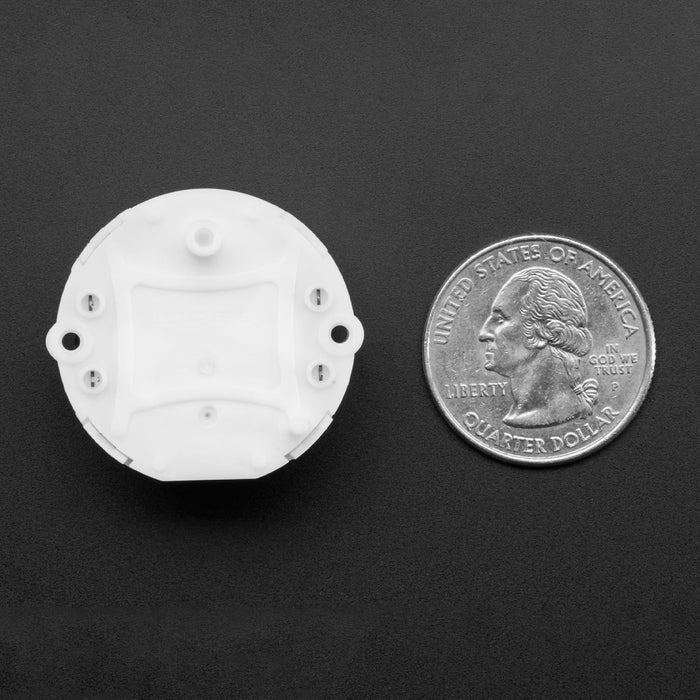

  • Motor Thickness (w/o pins): 9mm

Resources

• We do not have an exact datasheet for this product. We have one for a compatible gauge which could be helpful but is not guaranteed to be identical!
  • Datasheet

Package Contents

• 1x Automotive Gauge Stepper Motor (x27.168)
• 1x  Red-line dial

Arduino Uno, breadboard, jumper wires and TB6612 board not included.
