TinyShield Proto Terminal Blocks - Installed [Discontinued]

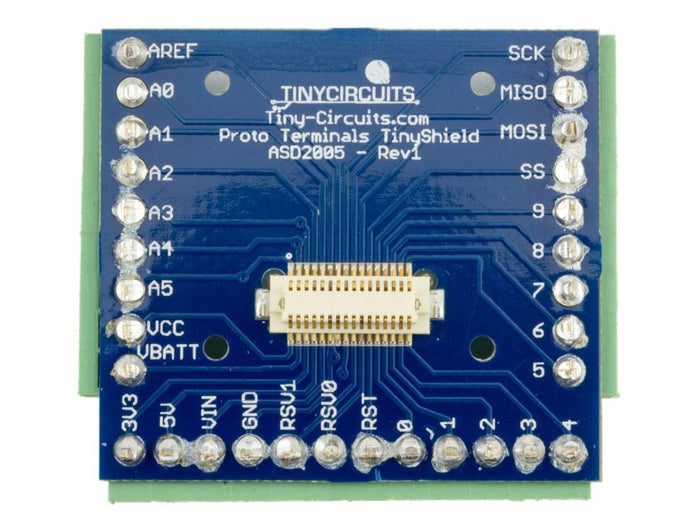

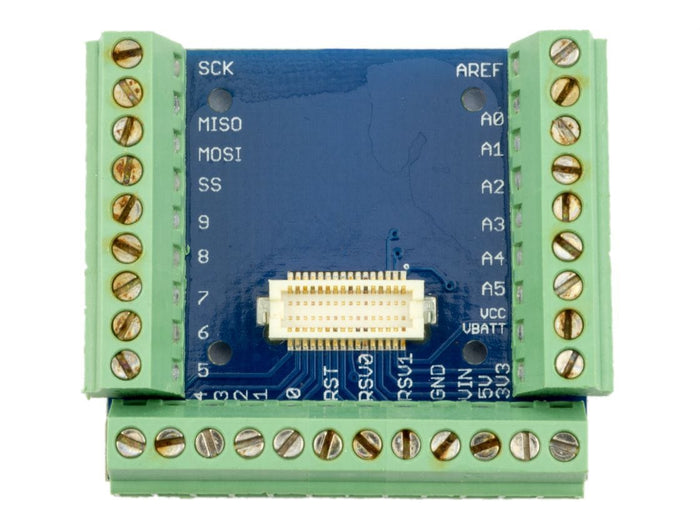

This board makes prototyping with the TinyDuino simple by adding screw terminals to every one of the signals available so you can create projects without having to solder. Just place a wire into the signal that you need and screw it down with a small screwdriver.

All of the shield signals are supported and are spaced with 0.1? spacing, and placed along the edge of the board which extends past the normal edge of the TinyDuino stack. This makes connecting to any of the shield signals very easy, and additional TinyShields can be stacked on top of this proto board, so it can be placed anywhere in the TinyDuino stack for your project.

To learn more about the TinyDuino Platform, click here.
