SparkFun USB MicroB Plug Breakout

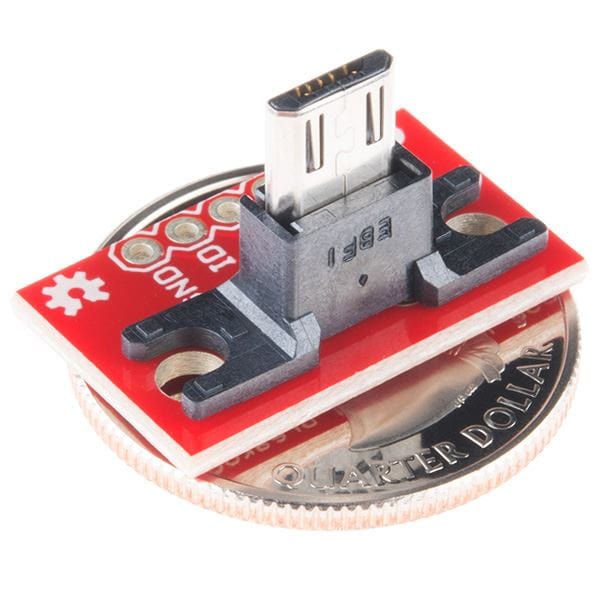

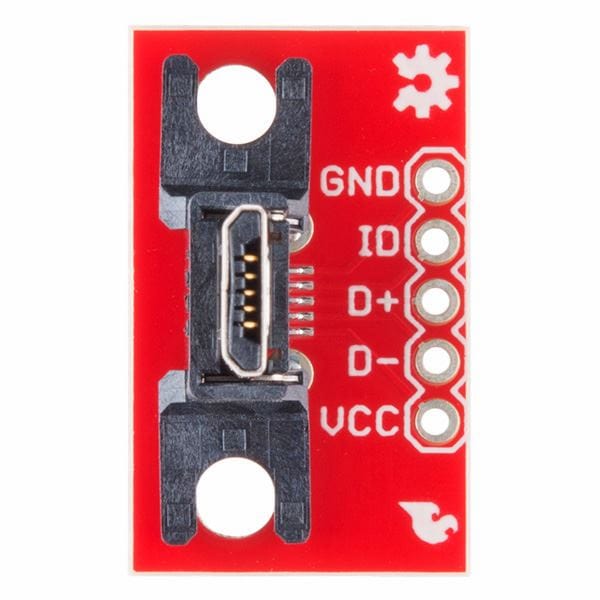

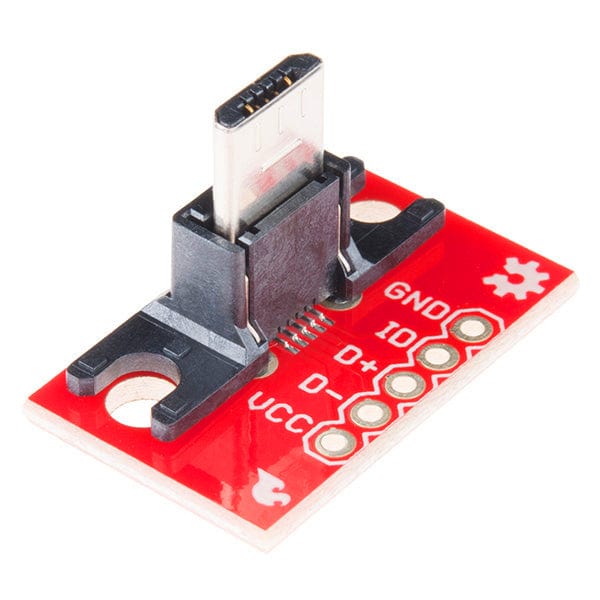

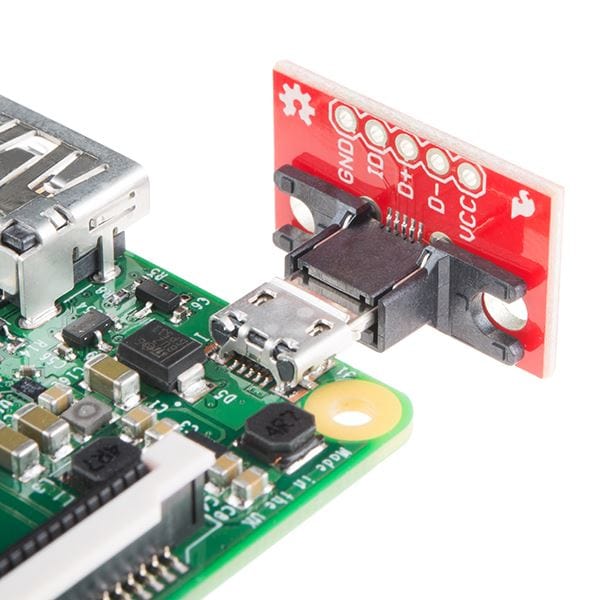

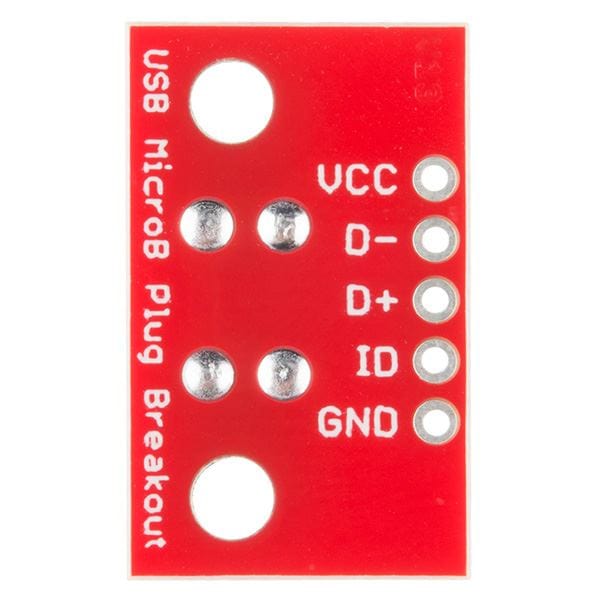

We have no idea what USB device you are hooking up to, but if you want to access the micro USB port on something, you might want this. We broke out all 5 pins with a vertical micro USB connector for your prototyping needs.

Features

Dimensions: 23.54L x 14.75W x 14.65H mm

Resources

• Schematic
• Eagle Files
• GitHub
