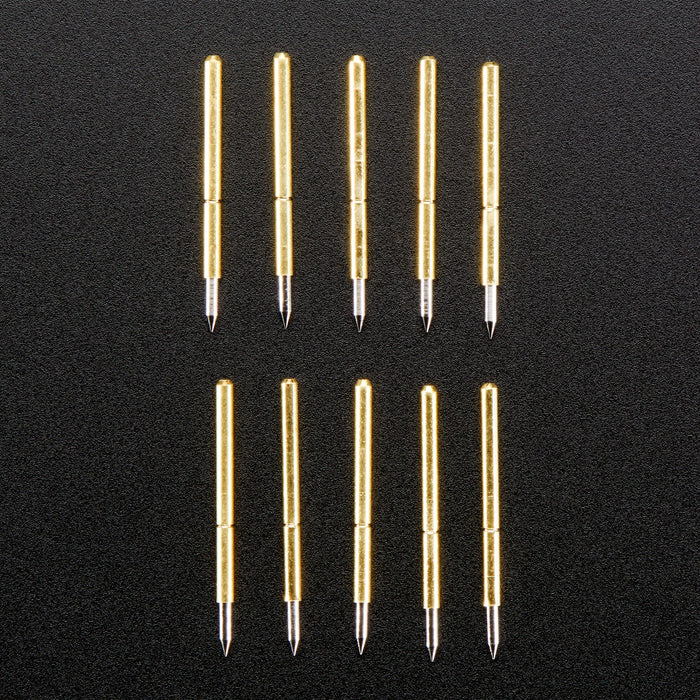

Pogo Pins "Needle Head" (10 pack) (P75-B1)

These Pogo Pins provide precise spring-loaded electrical contacts for programming, testing and custom jigs, with a slim 1mm body and fine 0.7mm contact head for accurate connections.

Pogo pins are little spring-loaded contacts, very handy for making jigs, or making momentary (but electrically solid) contacts.

We use them by the dozen for making programming and testing jigs but they're handy also if say you want to JTAG program a board that you cant solder headers to - just shove these thin contacts into a 0.1" pitch IDC programming cable and press it onto the contacts.

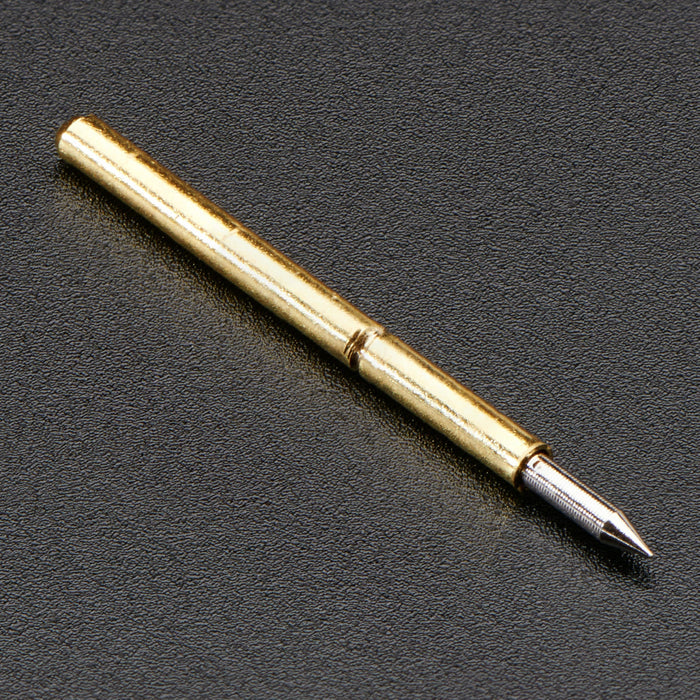

These particular pins are (in our opinion) ideal because they are skinny enough to fit into most protoboards or perfboards - they have a 1mm diameter body (the gold part) but the precise spring contact head is 0.7mm wide. The uncompressed length is 16mm, compressed is 13mm.

We also stock these in Crown Head and Cupped Head shape.

Features

• Spring-loaded contact pins ideal for programming and testing jigs
• 1mm diameter body with 0.7mm wide precision spring contact head
• Thin design fits into standard 0.1" pitch protoboards and perfboards
• 16mm uncompressed length, compresses to 13mm
• Electrically solid momentary contacts
• Suitable for JTAG programming without soldering headers
• Compatible with IDC programming cables
• Also available in Crown Head and Cupped Head variants

Specifications

• Diameter (body): 1mm

• Diameter (spring contact head): 0.7mm

• Uncompressed Length: 16mm

• Compressed Length: 13mm

Resources

• Tutorial on Pogi-pin jigs

Package Contents

• 1x Pogo Pins "Needle Head" (10 pack) (P75-B1)
