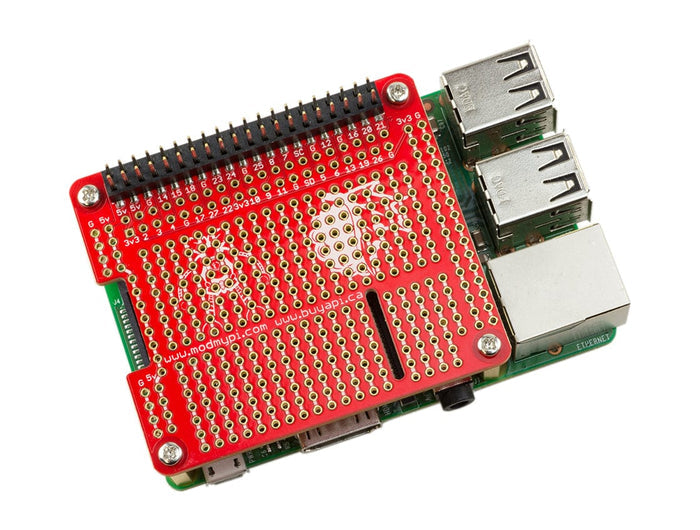

ModMyPi Raspberry Pi Prototyping HAT [Discontinued]

Design your own Raspberry Pi HAT, attach custom circuits, LEDs, IC's, potentiometers and more, with our Raspberry Pi Prototyping HAT!

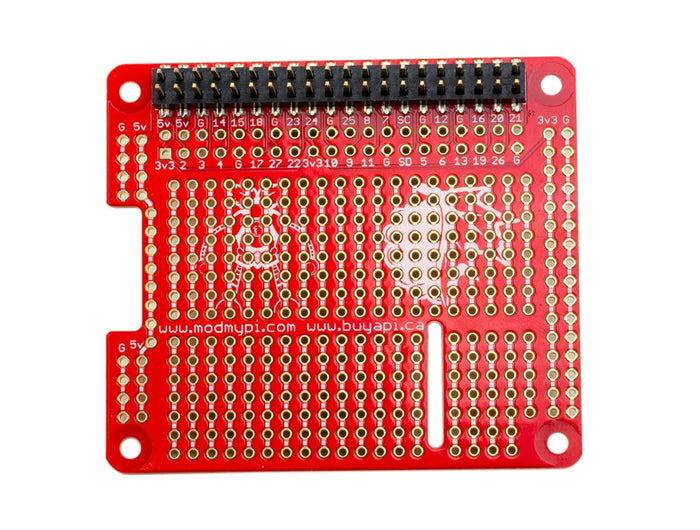

The HAT consists of a 0.1" prototyping soldering grid for attaching your peripherals with breadboard style traces for easy links between components.

The prototyping board includes 3.3V, 5V & GND strips for easy power connections and a labelled GPIO breakout array (2 x 20) which fits a Raspberry Pi header (not included) for quick GPIO links!

Features

• HAT Compliant Layout
• Power Strips: 3.3V, 5V & GND
• 0.1" Prototyping Soldering Grid
• Uses SMT Socket Header & 40 Pin Extra Tall "Double Shroud" Header
• Includes 14mm Mounting Kit
• Fully Assembled - No Soldering Required
• Stackable
• 40 Pin Breakout Array (2 x 20) fits a Raspberry Pi header (Not Included)
