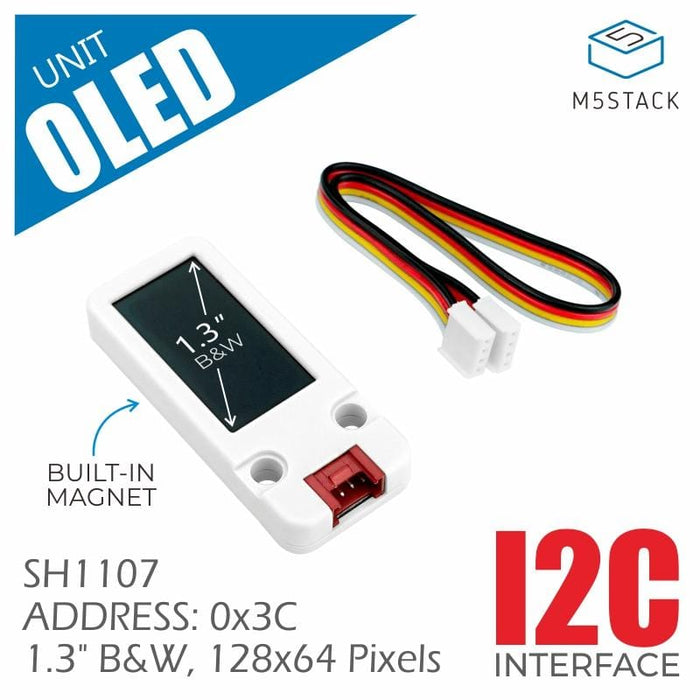

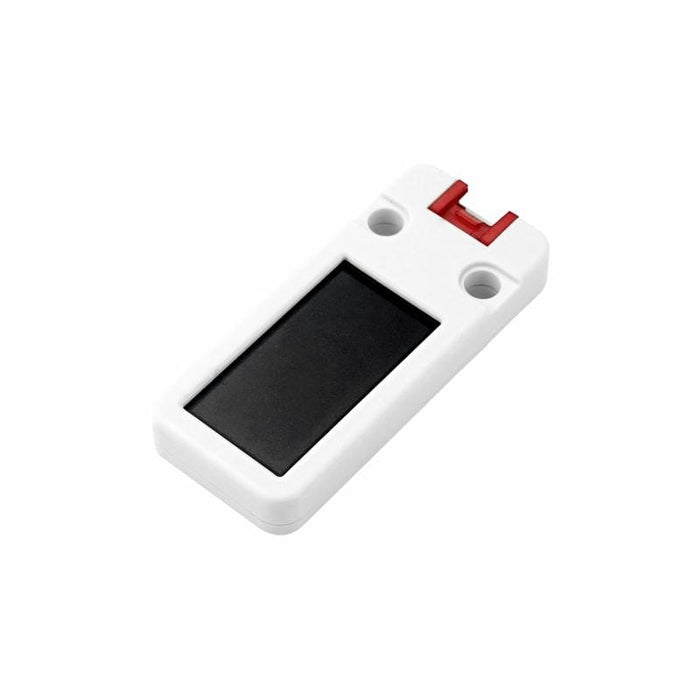

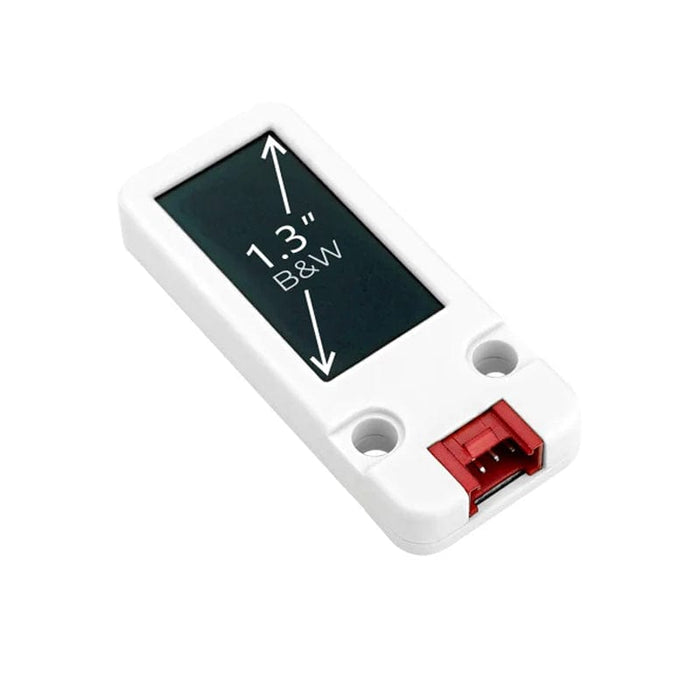

OLED Unit is a 1.3-inch OLED expansion screen unit. It has an SH1107 drive scheme, supports black/white display, and the resolution is 128 x 64. The driver chip uses the I2C communication interface, and the user can mount it to the I2C bus of the existing device when in use, which saves IO. The back of the screen is integrated with a magnetic design, which can easily be fixed on a metal surface.
Features
- OLED display panel
- SH1107 drive scheme
- Display color: black/white
- I2C communication interface
- 128*64 resolution
- Viewing angle: full viewing angle
- Magnetic back design

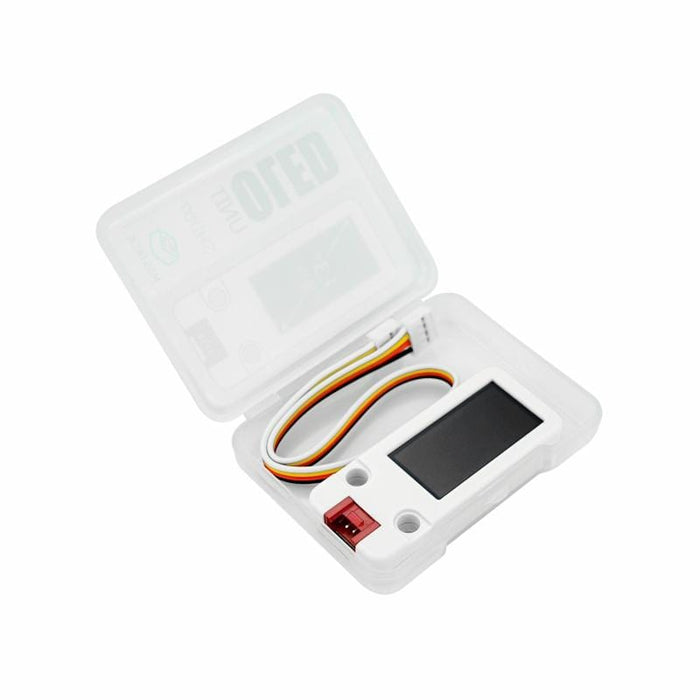

Package Contents
- 1x Unit OLED
- 1x HY2.0-4P Cable
Specifications
| Specification | Parameter |
|---|---|
| Working Current | 58mA |

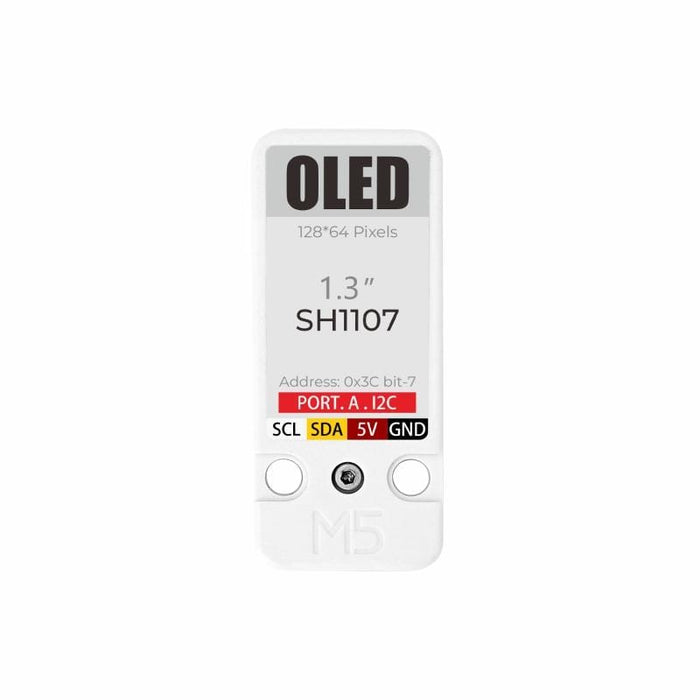

| Communication Protocol | I2C address: 0x3C |
| Display Size | 14.7 x 29.42 (mm） |
| Pixel Pitch | 0.17 x 0.17 (mm） |
| Pixel Size | 0.15 x 0.15 (mm） |
| Viewable | Full view |
| Operating Temperature | 0°C to 60°C |
| Net Weight | 9.3g |
| Gross Weight | 20g |

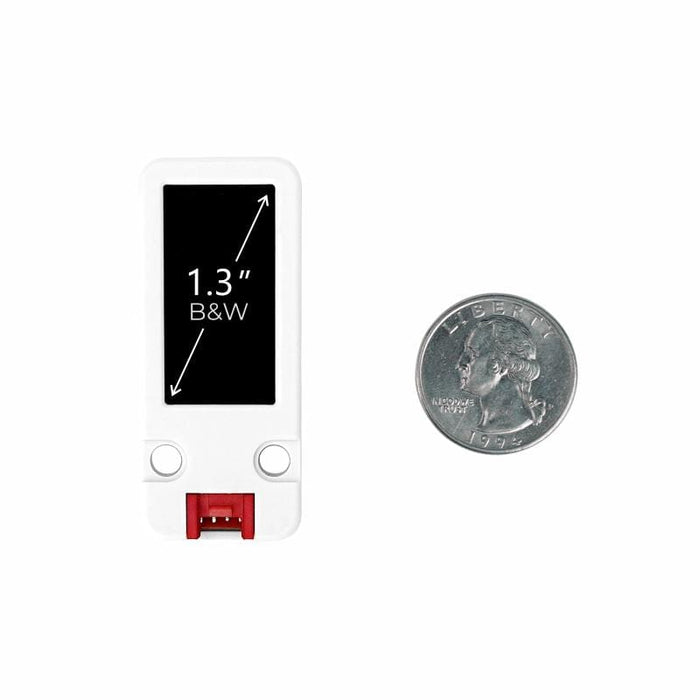

| Product Size | 24 x 56 x 8mm |
| Package Size | 67 x 53 x 12mm |
| Case Material | Plastic (PC) |
