M5Stack LoRa Module (433MHz) [Discontinued]

The LoRa (433MHz) is a LoRa communication module in the M5Stack stack module series (working frequency is 433MHz). A certain expansion space is reserved on the module, which gives you a more functional design. For wireless communication or projects with more customised elements, the LoRa (433MHz) module will be a suitable choice.

Features

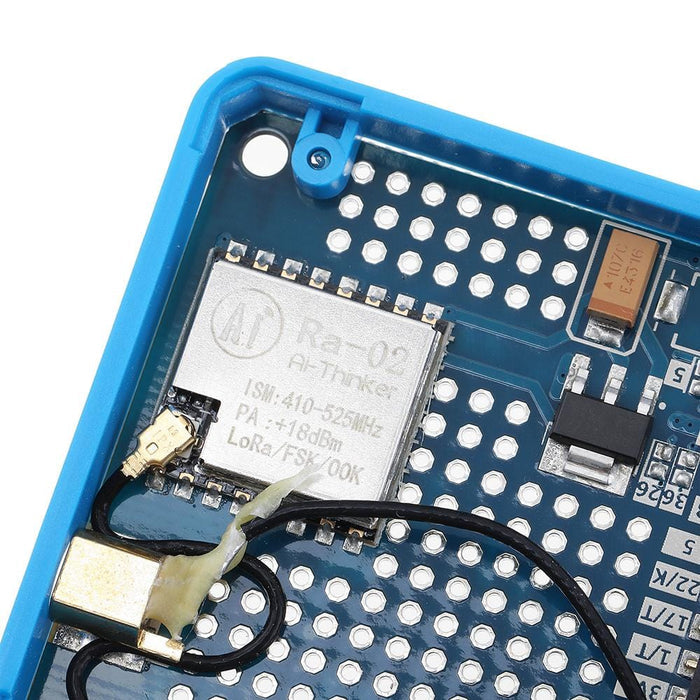

• LoRa (433MHz) Module: Ra-02
• Series Communication Protocol: SPI
• Universal Perboard
• Working Frequency: 433 MHz
• Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
• Receive sensitivity: lowest to -141 dBm
• Programmable bit rate up to 300Kbps

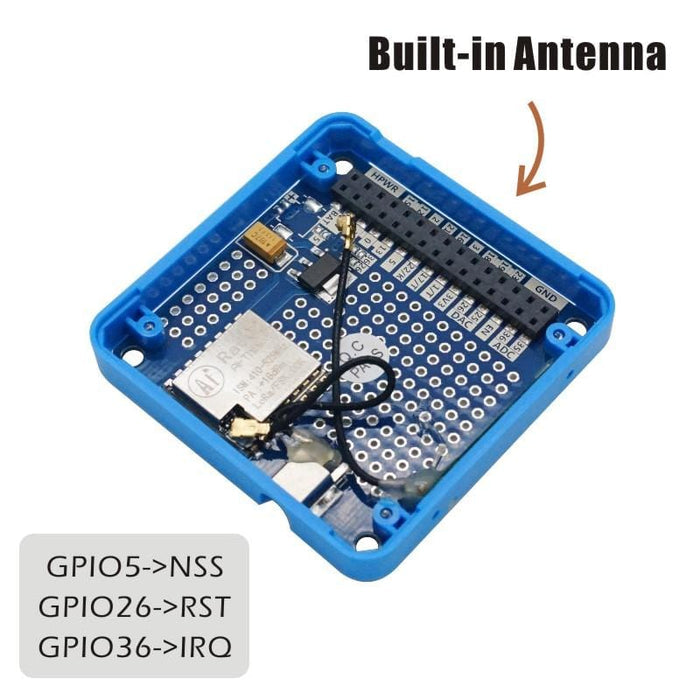

• Build-in PCB Antenna
• External Antenna port
• Program platform: Arduino, MicroPython, UIFlow (Blockly)

Package Contents

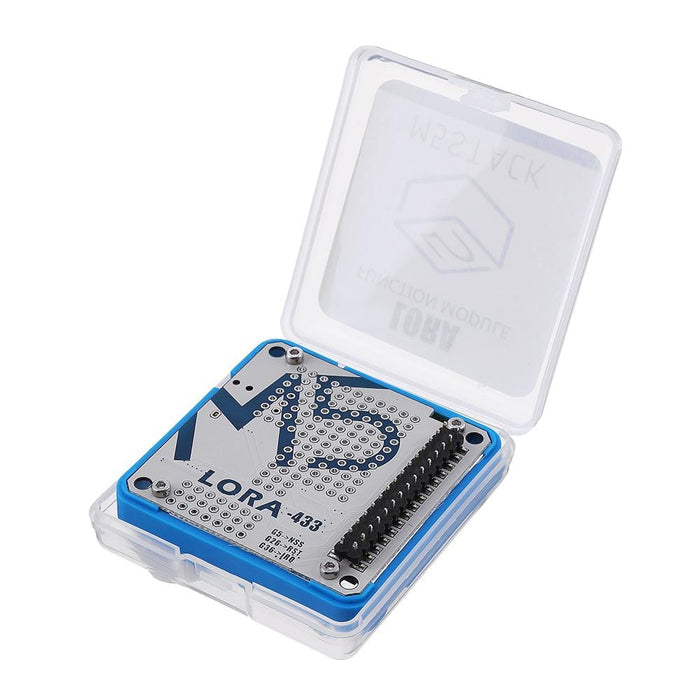

• 1x M5Stack LoRa Module
