M5Stack ATOM Stepper Motor Driver Development Kit (DRV8825) [Discontinued]

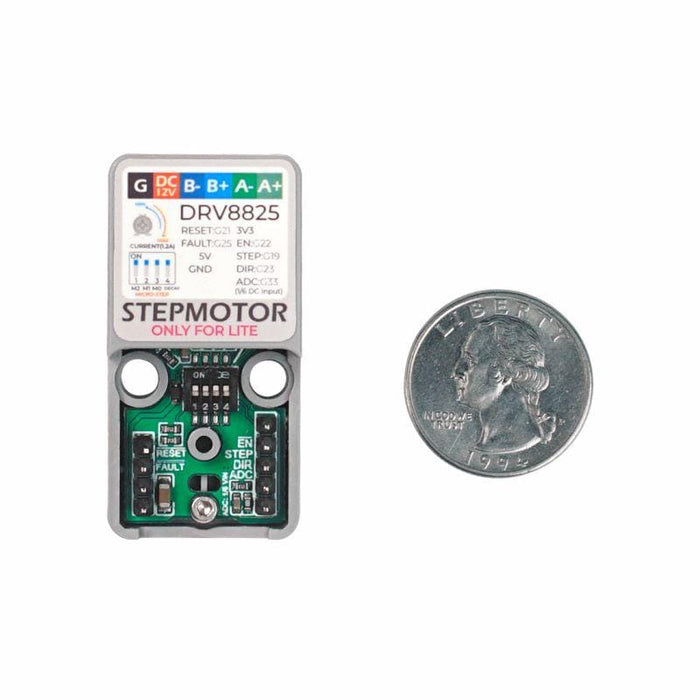

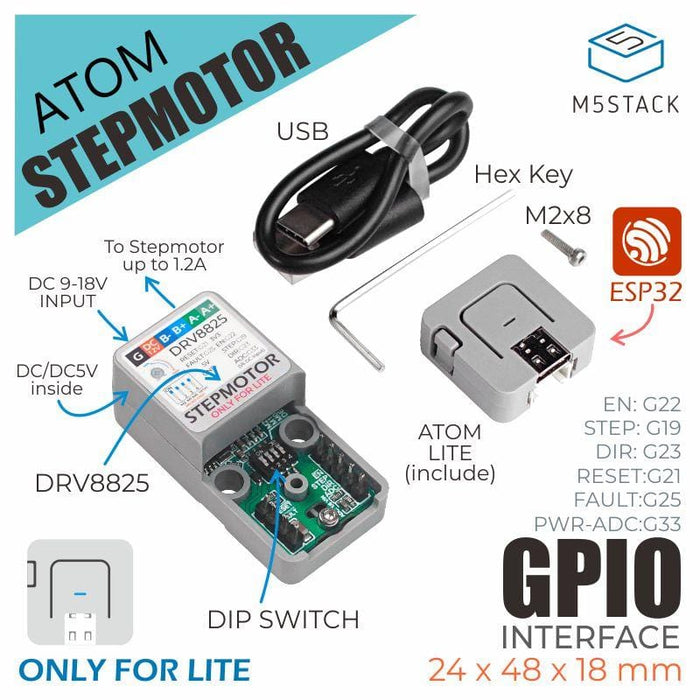

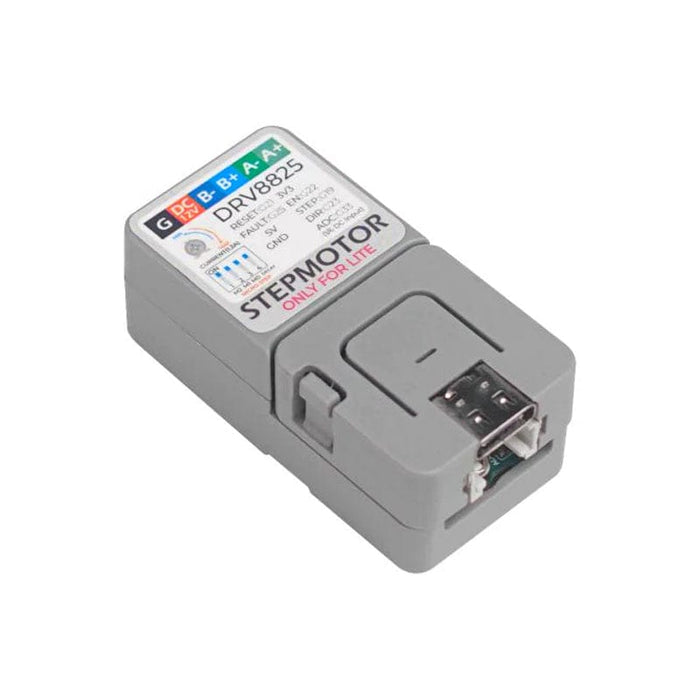

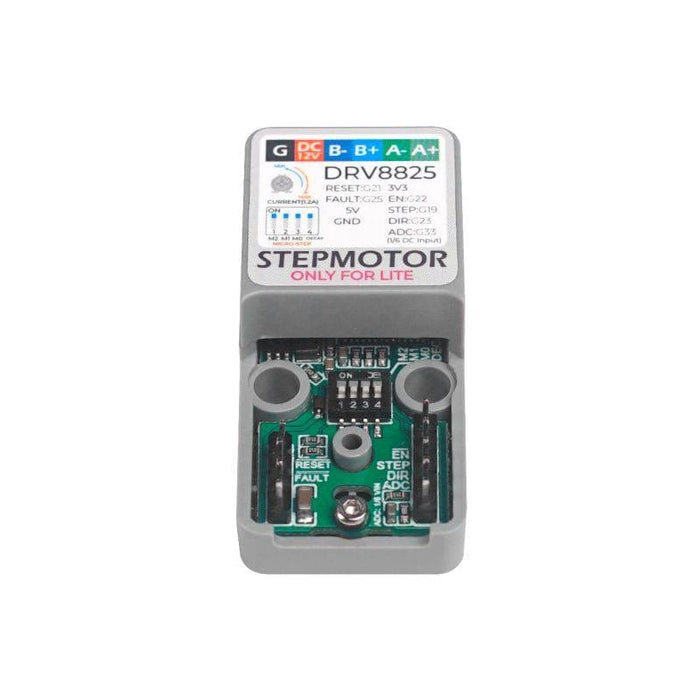

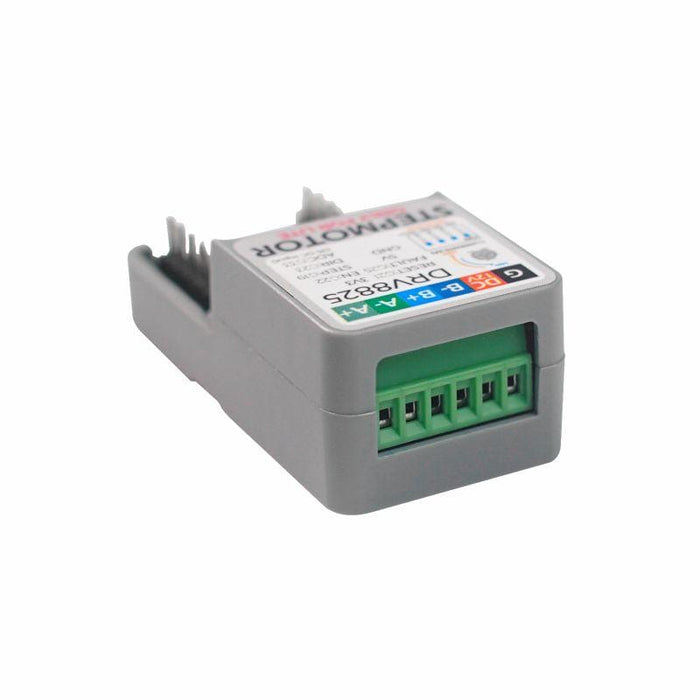

The ATOM STEPMOTOR is a stepper motor driver module suitable for Atom Lite only. There is a built-in DRV8825 driver chip, which can be used to drive a stepper motor. By adjusting the variable resistance, it provides a maximum driving current of 1.2A. The chip has its own over-current protection function, and a DIP switch on board that can adjust the step number flexibly. With a built in DC-DC, the external power supply can supply power to the ATOM, and the drive motor needs an external power supply (9-18V).

Features

• Adapt to Atom Lite only
• Built in DC-DC
• Up to 1/32 micro-stepper
• Maximum 1.2A drive current
• Working status indicator

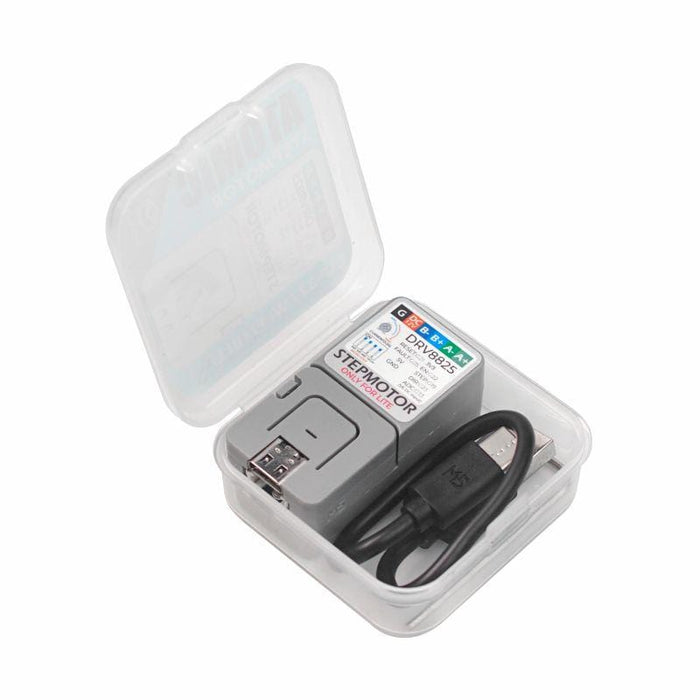

Package Contents

• 1x ATOM Lite
• 1x Atom Step Motor
• 1x Type-C Cable(20cm)

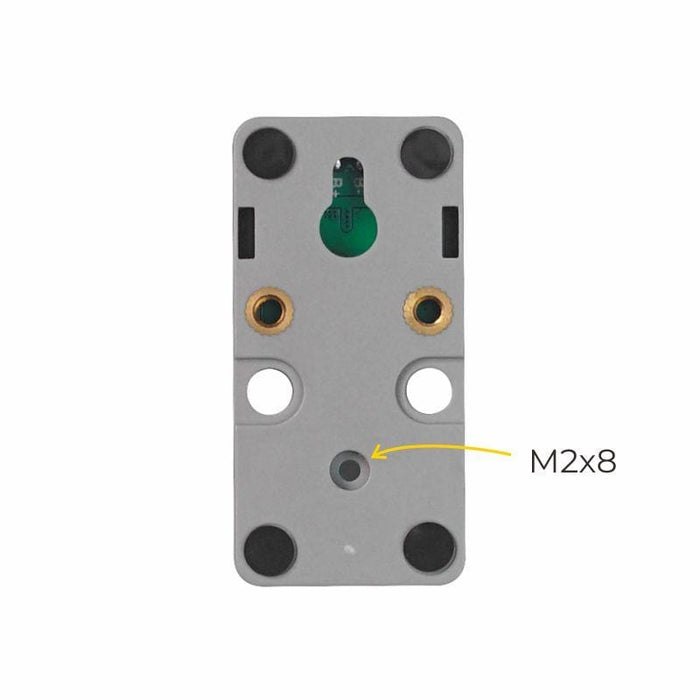

• 1x M2*8 Screw
• 1x Hex key

Specifications

Resources
