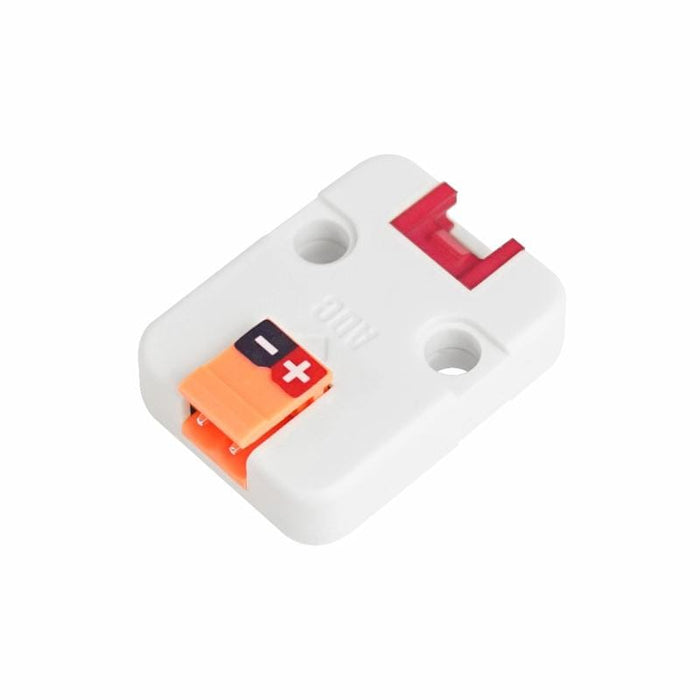

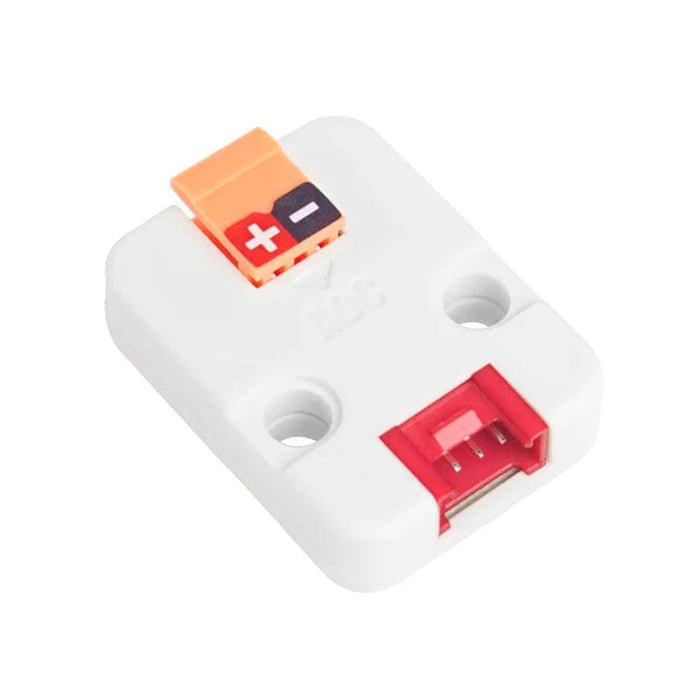

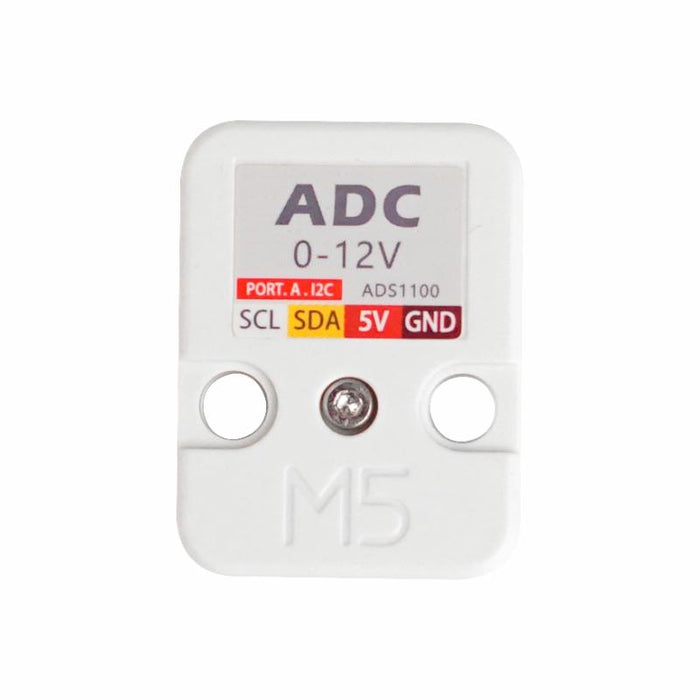

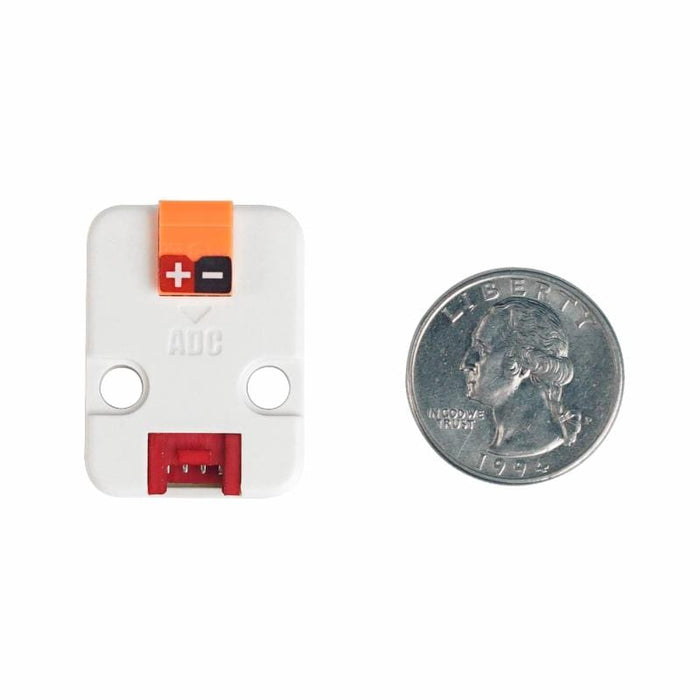

M5Stack ADC I2C Unit (ADS1100) [Discontinued]

This ADC unit is an integrated ADS1100 device which is a fully differential, 16-bit, self-calibrating, delta-sigma A/D converter.

It communicates through the I2C interface, which means you can collect AD data through PortA on the M5Core device in order to enhance your A/D capabilities and performance.

The default I2C address is 0x48 unless changed manually.

Features

• Complete data acquisition system in a tiny SOT23-6 package
• 16-BITS no missing codes
• INL: 0.0125% of FSR MAX
• Continuous self-calibration
• Single-cycle conversion
• Programmable gain amplifier with gain range of 1, 2, 4, OR 8
• Low Noise: 4µVp-p
• Programmable data rate: 8SPS to 128SPS
• Internal System Clock
• I2CTM Interface
• Power Supply: 2.7V to 5.5V
• Low Current Consumption: 90µA
• Available in eight different addresses
• Two LEGO-compatible holes

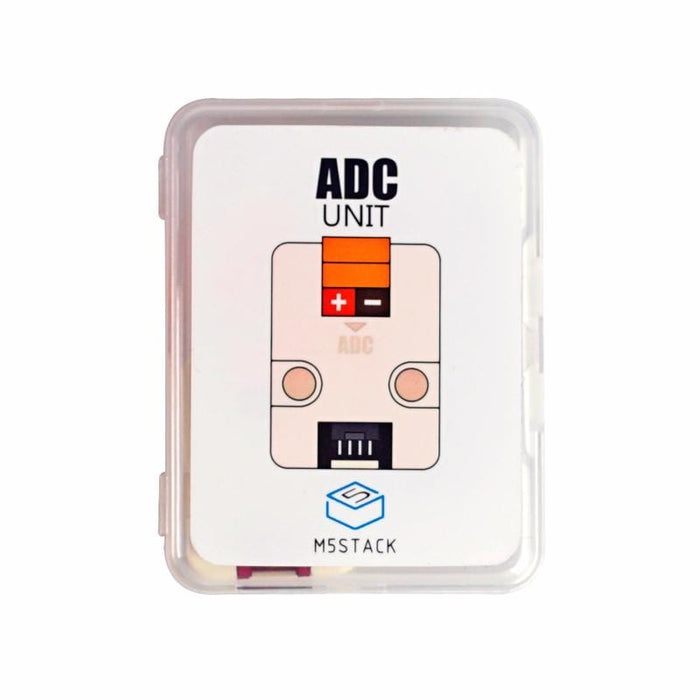

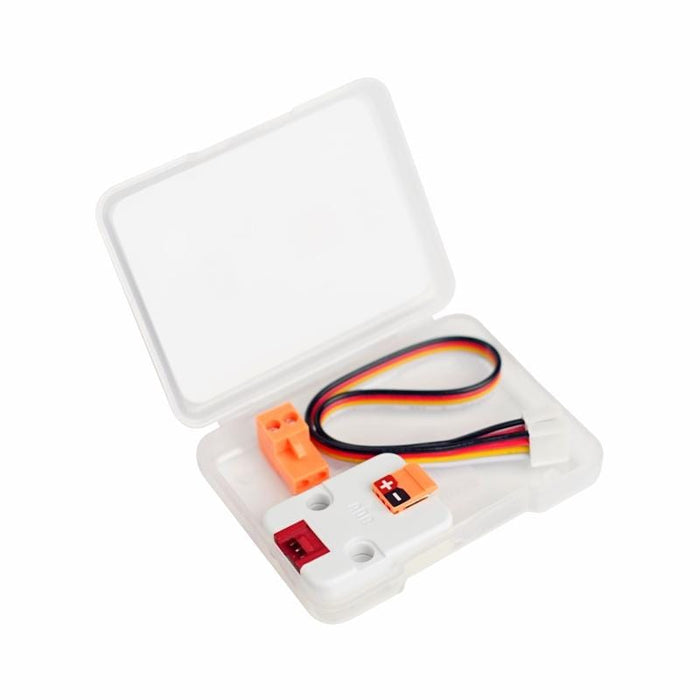

Package Contents

• 1x ADC unit
• 1x GROVE Cable
• 1x HT3.96 Male Socket (2 pins)
