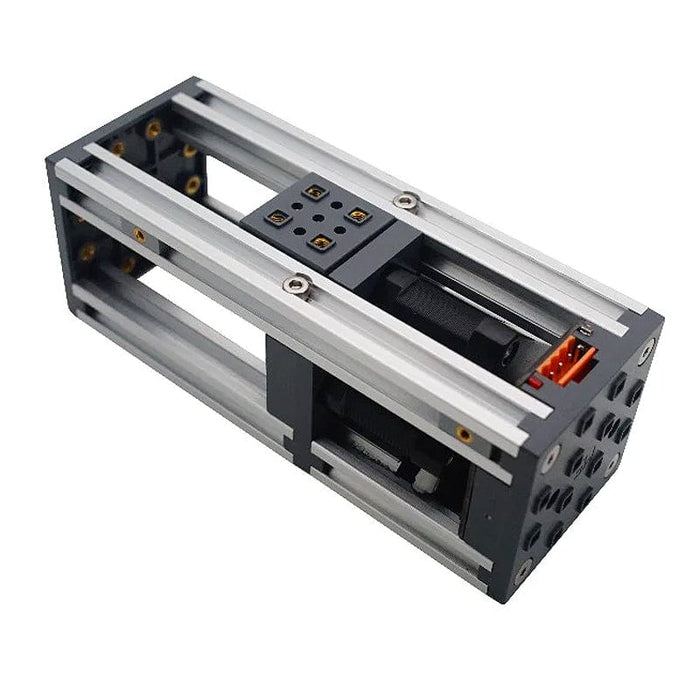

M5Stack 6060-PUSH Linear Motion Control

This module provides motion & robotic control and is customisable with different lengths. Packed with stepper motor, Mega328 microprocessor, RS485 serial bus, and a 1515 framework. It has linear motion control, so you can program the stepper motor to move a certain length with high precision. This type of module can be applied to 3D print, linear push and etc.

Features

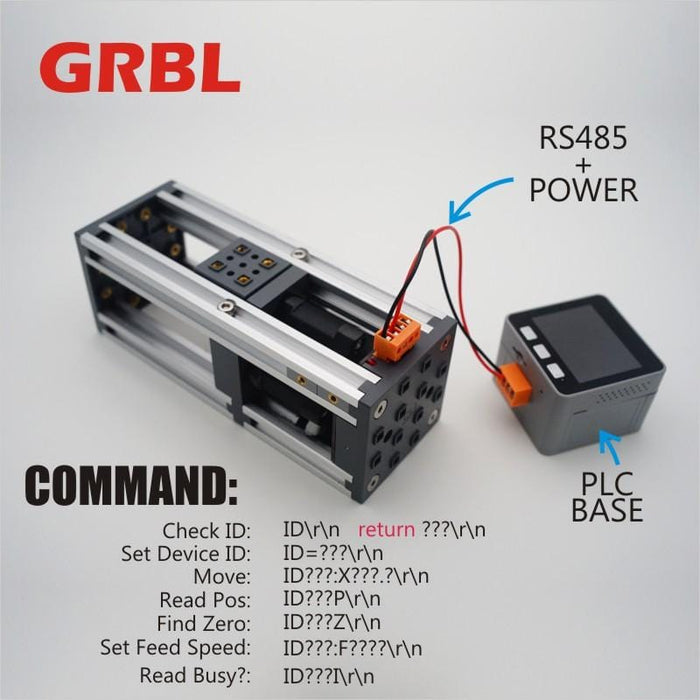

• Mega328 inside: GRBL
• Customisable: length & distance
• RS485
• 1515 Aluminium Profile frame
• 48 stepper motor: 2 phase 4 lines
• Itinerary: 57mm
• Input voltage: 12-24V
• Motor power: 10W

Package Contents

• 1x 6060 module

Specifications

Resources
