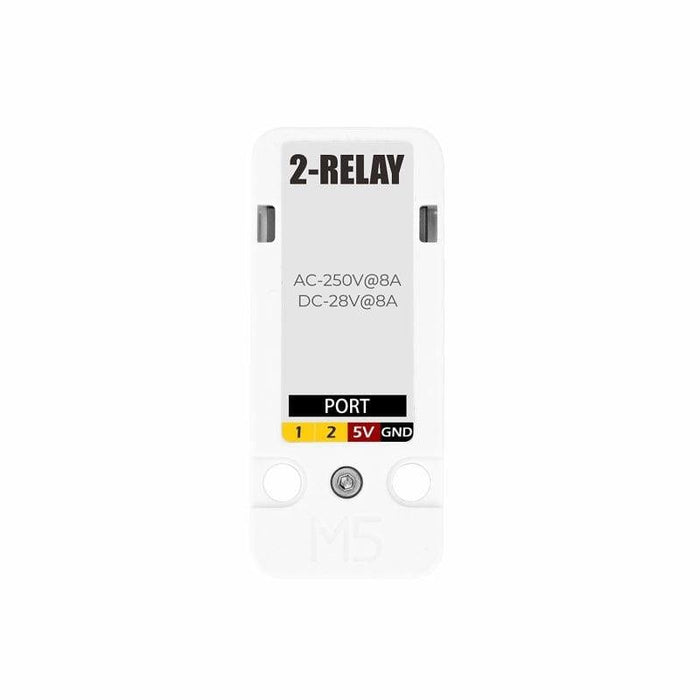

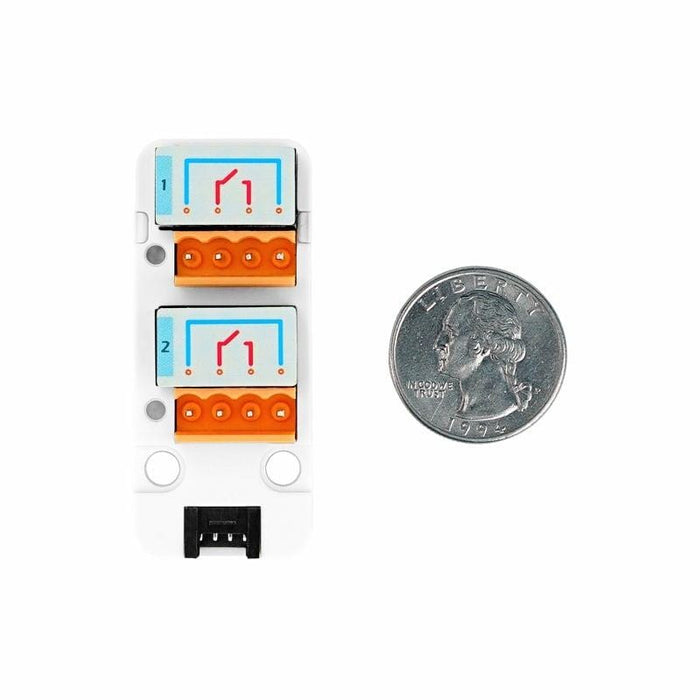

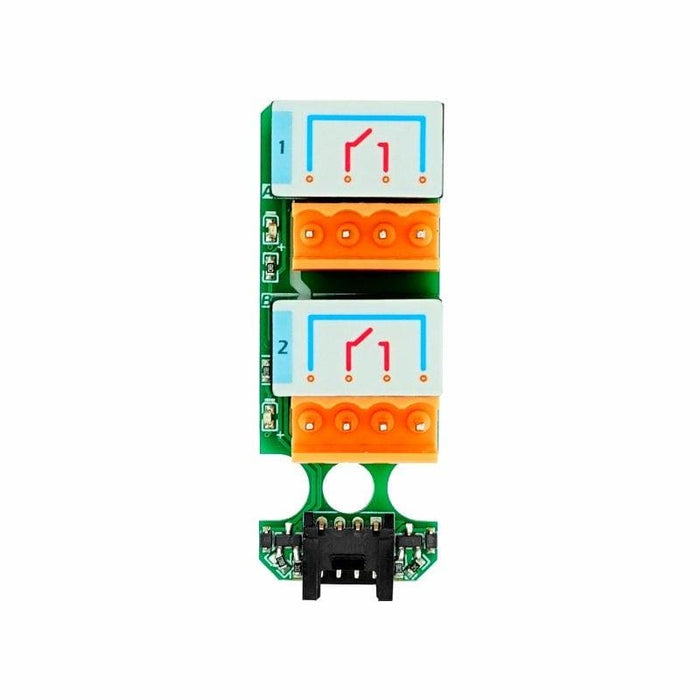

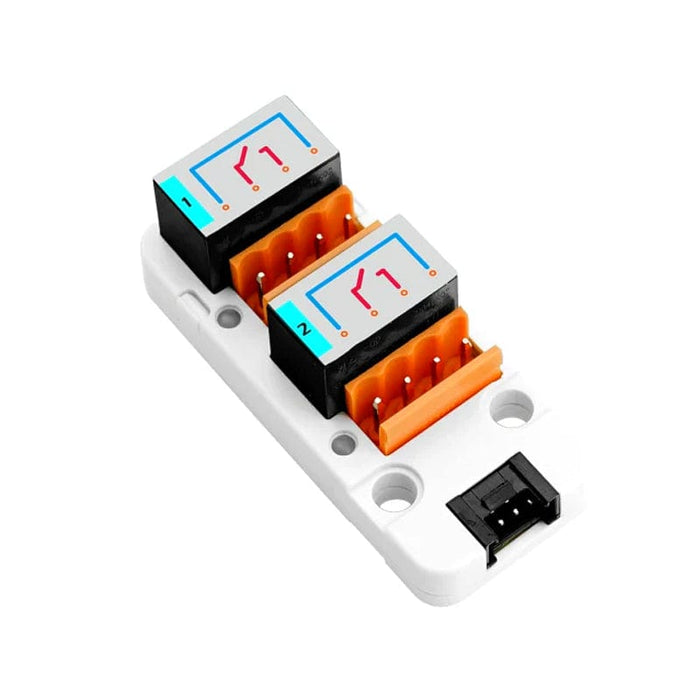

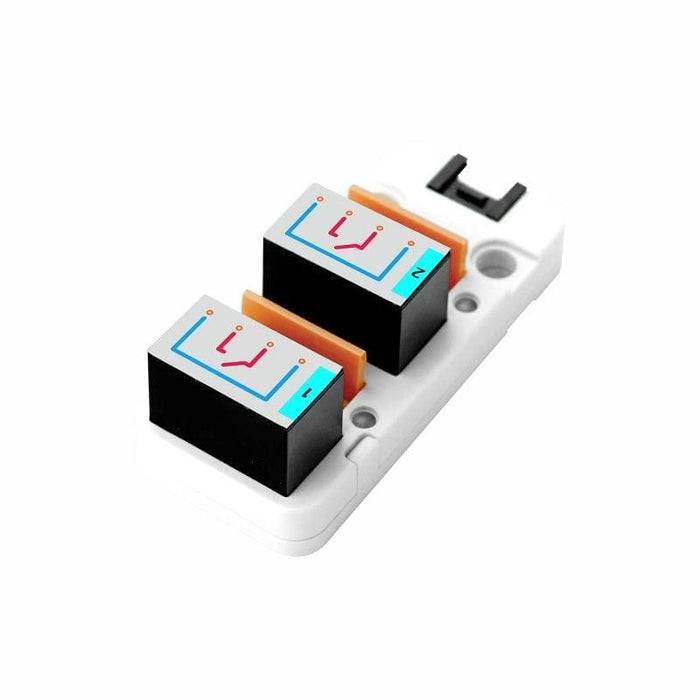

The 2-Channel SPST Relay Unit from M5Stack is a 2-channel SPST relay module equipped with two high-current relays that work under AC250V 8A or DC28V 8A.
Each relay adopts independent IO control and status indicator LED. It's suitable for home appliance power control or ON/OFF switch for industrial equipment.
The module comes with connector blocks and a cable.
Features
- 2-channel relay
- AC-250V/DC-28V @ 8A
- Status Indicator LED

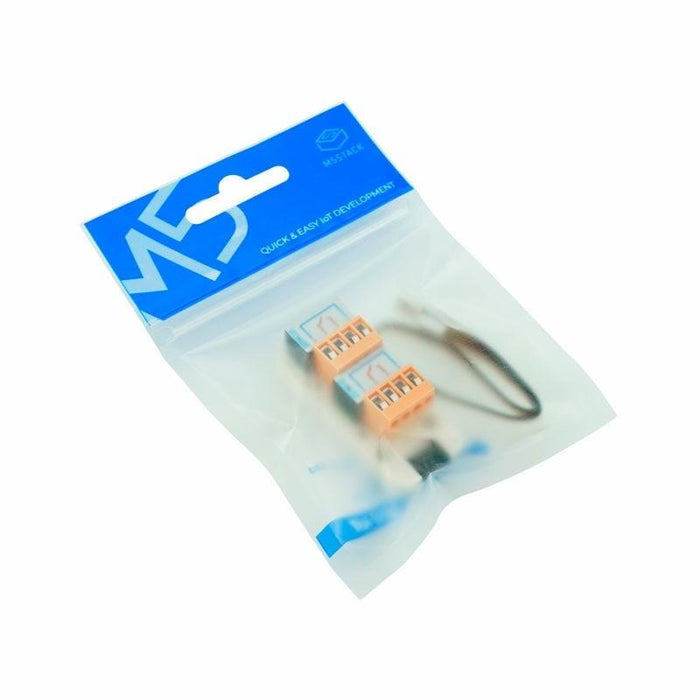

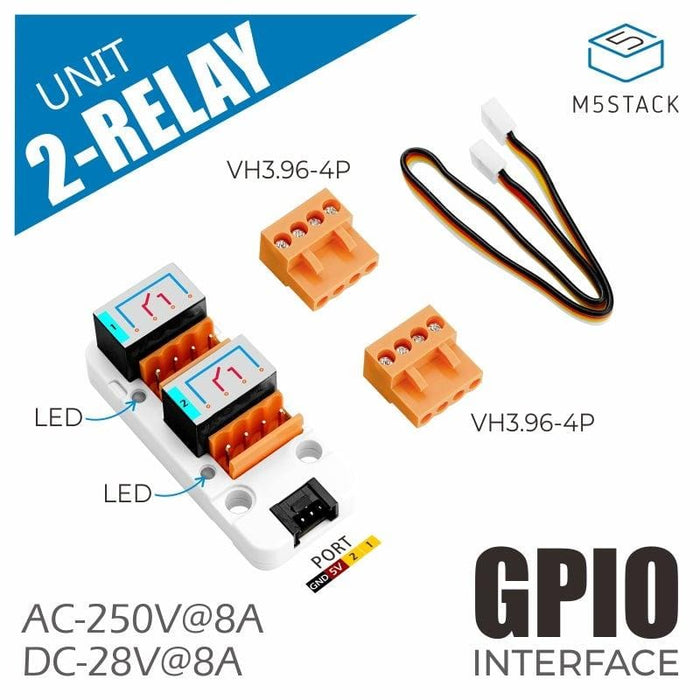

Package Contents
- 1x 2-RELAY Unit
- 1x HY2.0-4P cable (20cm)
- 2x VH3.96-4P Plug terminal
Specification
| Specifications | Parameters |
| Maximum on-off voltage | AC-250V/DC-28V |
| Rated current | 8A |
| Coil control voltage | DC5V |
| Coil power consumption | 5V@154mA |
| Coil action time | ≤ 8ms |
| Coil release time | ≤ 5ms |
| Contact form | A normally open type |
| Contact material | AgSnO2 |
| Relay indicator | Blue x2 |
| Net weight | 20g |
| Gross weight | 31g |
| Product size | 56 * 24 * 19mm |
| Packing size | 93 * 138mm |
Resources
- Documentation page
