Gravity: Laser PM2.5 Air Quality Sensor [Discontinued]
$44.76
Sale price
$44.76
Regular price
$61.32
Skip to product information
Voltage: 4.95 ~ 5.05V
Maximum electric current: 120mA
Measuring pm diameter: 0.3~1.0/1.0~2.5/2.5~10 (um)
Measuring pm range: 0~1000 ug/m3
Standby Current: ≤200 uA
Response time: ≤10 s
Operating temperature range: -20 ~ 50C
Operating humidity range: 0 ~ 80% RH
Maximum size: 46 x 35 x 20mm
MTBF: > = 5 years
Product Wiki

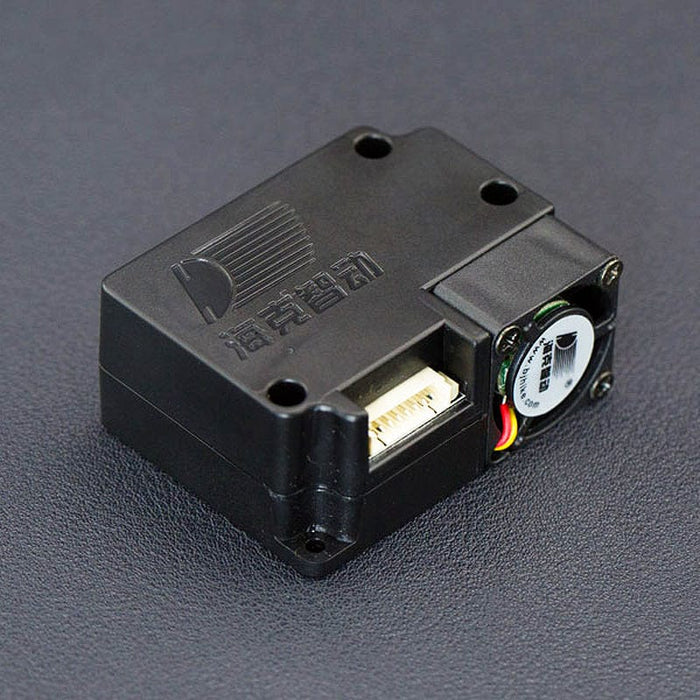

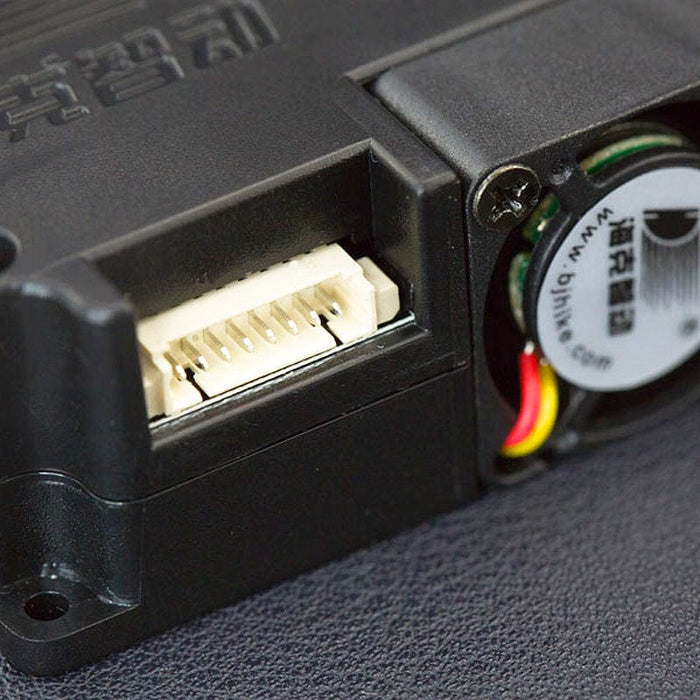

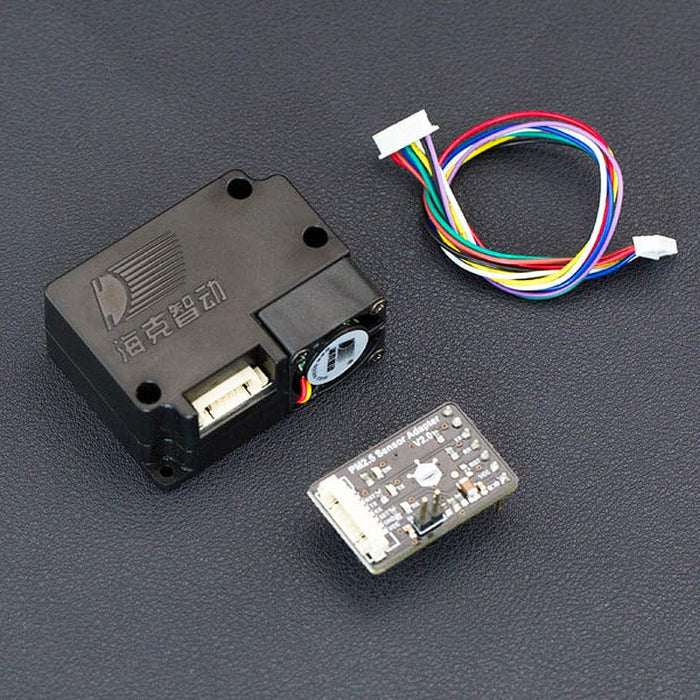

1x PM2.5 laser dust sensor

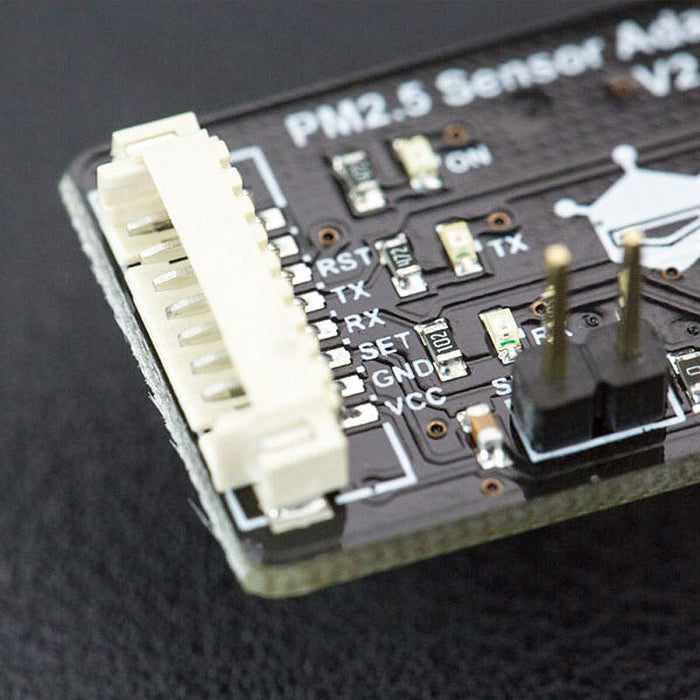

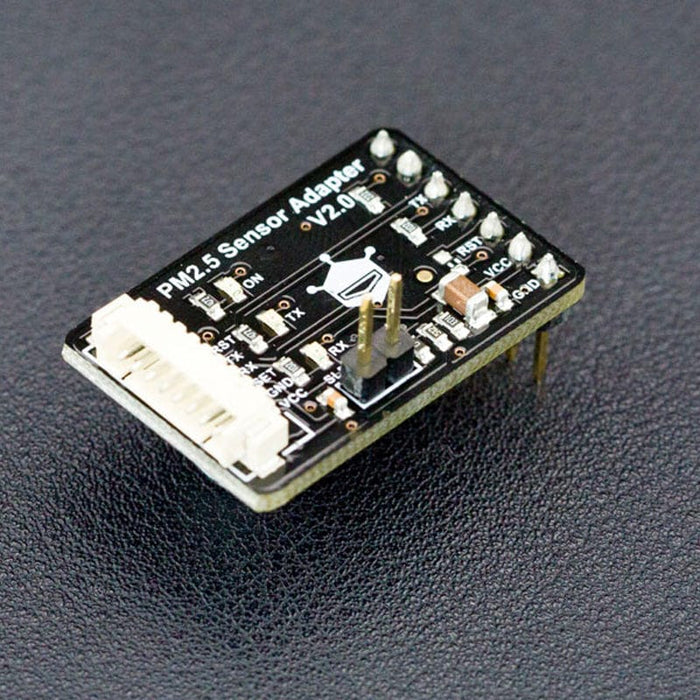

1x PM2.5 sensor adapter

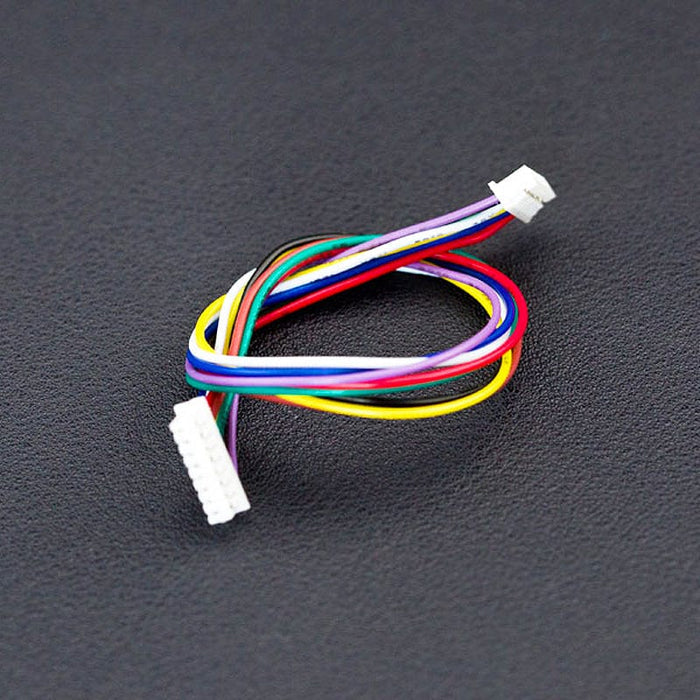

1x Sensor adapter cable
Gravity: Laser PM2.5 Air Quality Sensor [Discontinued]
$44.76
Sale price
$44.76
Regular price
$61.32
This PM2.5 laser dust sensor is a digital universal particle concentration sensor.
It can be used to obtain the number of suspended particulate matter in a unit volume of air within 0.3 to 10 microns, namely the concentration of particulate matter, and output with a digital interface can output quality data per particle.
The sensors can be embedded in a variety of concentrations of environment-related instruments suspended particulate matter in the air, to provide timely and accurate concentration data.
Connection Example - DFRduino UNO R3
