Arduino MKR ENV Shield Rev2

Arduino MKR ENV Shield Rev2

$34.85
$34.85 $52.02

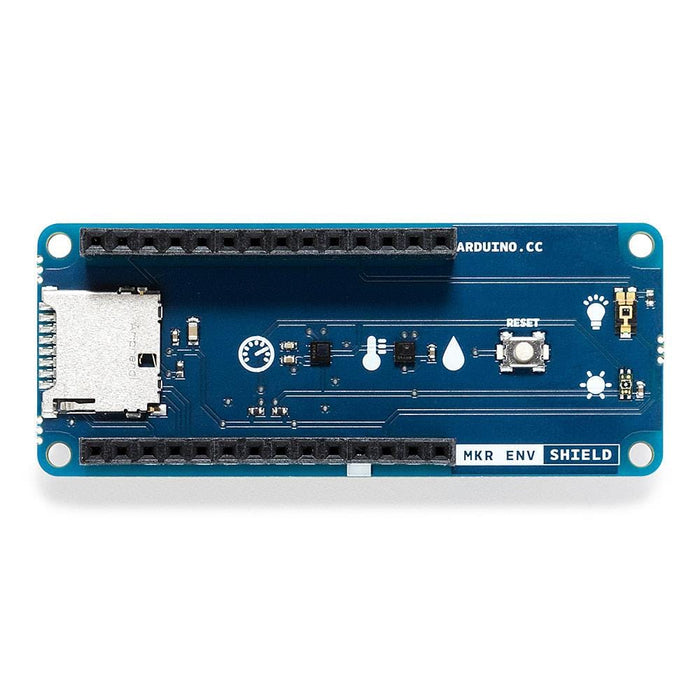

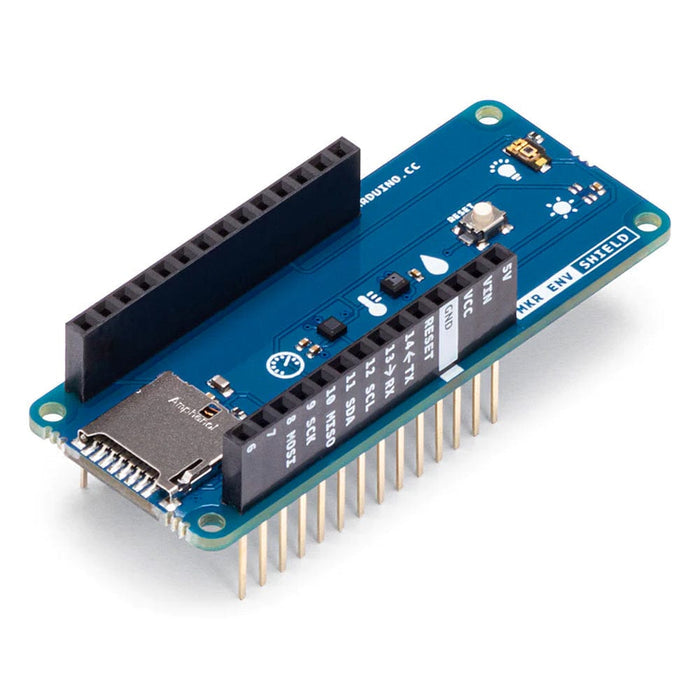

The MKR ENV Shield Rev2 allows an Arduino MKR board to acquire environmental data collected by an array of sensors.

These sensors are of the latest generation and measure:

  • Atmospheric pressure
  • Temperature and humidity
  • Light intensity (in LUX)

To help you build projects and store the data collected locally, this shield has a slot for a microSD card (not provided).

There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.

Sensors used

  • ST LPS22HB : atmospheric pressure
  • ST HTS221 : temperature and humidity
  • VISHAY TEMT6000 : Lux of the ambient

Resources

  • Development Environments
    • Arduino IDE
    • Arduino CLI
    • Arduino Web Editor
    • Arduino IoT Cloud
  • Schematics
  • Getting Started

Specifications

ICs

LPS22HB
TEMT6000
Input Voltage 3.3V
Operating Voltage 3.3V
Ranges

Pressure: 260 to 1260 hPa
rH sensitivity: 0.004% rH/LSB
Humidity accuracy: ± 3.5% rH, 20 to +80% rH
UVA, UVB and UVBI measurment
0 to 650 Lux
Communication I2C/Analog
Length 61 mm
Width 25 mm
Weight 32 gr.
